32,000 Grain Autotrol Water Softener

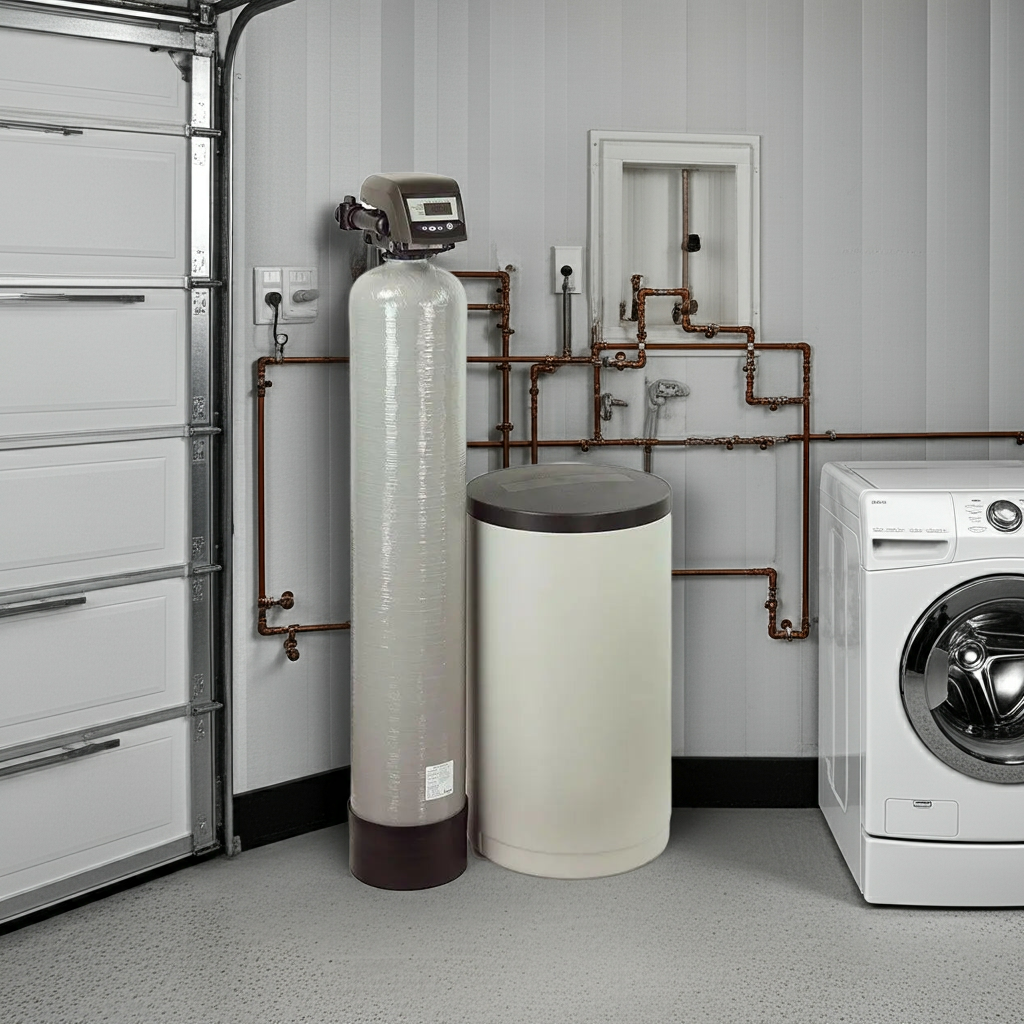

Enhance Your Home with the 32,000 Grain Autotrol Water Softener

Installing a 32,000 Grain Autotrol Water Softener involves several steps to ensure it operates effectively. Below is a basic guide for the installation process. Note that it's crucial to refer to the manufacturer's manual for detailed, model-specific instructions and safety guidelines. Professional installation is highly recommended to ensure the system is installed correctly and safely.

Preparation:

1. Select the Installation Site:

   • Choose a dry, level, and non-freezing area close to where the water line enters the home.
   • Ensure easy access to electrical outlets and drainage.

2. Gather Necessary Tools and Materials:

   • Pipe cutter or hacksaw
   • Teflon tape
   • Wrench set
   • Soldering kit (if needed)
   • Flexible tubing for drainage

Installation Steps:

1. Turn Off the Main Water Supply:

   • Ensure the water supply is turned off before starting the installation.

2. Install the Bypass Valve:

   • Attach the bypass valve to the water softener control head.

3. Connect the Water Softener:

   • Cut the main water line and connect the water softener using the appropriate fittings.
   • Ensure the water flow direction matches the arrows on the bypass valve.

4. Connect the Drain Hose:

   • Attach a drain hose to the water softener’s drain fitting.
   • Secure the hose and run it to a suitable drain or utility sink.

5. Install the Overflow Tube:

   • If the model includes a salt storage tank, attach the overflow tube and run it to a suitable drain.

6. Add Salt to the Brine Tank:

   • Fill the brine tank with the appropriate type and amount of salt.

System Startup:

1. Slowly Turn On the Water:

   • Slowly open the main water supply to fill the water softener tank, checking for leaks.

2. Plug In the Water Softener:

   • Plug the unit into an electrical outlet.

3. Program the Control Valve:

   • Refer to the manufacturer’s instructions to program the control valve based on your water hardness and household water usage.

4. Backwash the System:

   • Initiate a manual regeneration cycle to backwash the system, following the manufacturer’s instructions.

5. Check the System:

   • Ensure the system is operating correctly and monitor for any issues or leaks.

Post-Installation:

1. Regular Maintenance:

   • Regularly check salt levels, add salt as needed, and perform routine system checks.

2. Professional Assistance:

   • If you encounter any issues during installation or operation, contact the manufacturer or a professional plumber for assistance.

 AT760-timer-spec-sheet

Item #: MT268/760B-32B

PRODUCT INFO

Supplier: Nelsen Corporation

32,000 Grain Softener includes Autotrol Logix 268 Performa control valve with 760 electronic meter control, Autotrol Logix cover, polyglass mineral tank, Autorol bypass, basket distributor, and standard mesh resin.

Image shown with optional 1833 brine tank.

ITEM SPECIFICATIONS

• Options
  Basket Distributor
• Style
  Residential Softener
• System Size - Grains
  Residential Softener
• System Size - Grains
  32000
• Valve Model
  Residential Softener
• Valve Model
  Autotrol 268 760 Logix Control
• Valve Type
  Residential Softener
• Valve Type
  Metered

Efficient Water Softening

The 32,000 Grain Autotrol Water Softener

is designed to effectively remove hardness minerals such as calcium and magnesium from your water supply. By utilizing state-of-the-art technology, it ensures that you receive soft water for various household needs. This system not only helps in avoiding scale buildup in pipes and appliances but also enhances the taste of drinking water, making it a valuable addition to any home.

Convenient and User-Friendly Features

This model includes a user-friendly interface, allowing you to easily monitor and control its functions. The Autotrol’s digital control valve simplifies the regeneration process, ensuring optimal performance with minimal effort. It's important to note that regular maintenance is straightforward, so you can rely on consistent water quality without the hassle.

Cost-Effective and Eco-Friendly Solution

Investing in the 32,000 Grain Autotrol Water Softener can lead to significant savings on soap and detergent due to its water-softening capabilities. Softened water requires less soap for effective cleaning, which means your household expenses reduce over time. Additionally, this system promotes a more eco-friendly lifestyle, so you’re not only saving money but also reducing your environmental impact because you use fewer harsh chemicals.

Efficient Water Softening

The 32,000 Grain Autotrol Water Softener

is designed to effectively remove hardness minerals such as calcium and magnesium from your water supply. By utilizing state-of-the-art technology, it ensures that you receive soft water for various household needs. This system not only helps in avoiding scale buildup in pipes and appliances but also enhances the taste of drinking water, making it a valuable addition to any home.

Convenient and User-Friendly Features

This model includes a user-friendly interface, allowing you to easily monitor and control its functions. The Autotrol’s digital control valve simplifies the regeneration process, ensuring optimal performance with minimal effort. It's important to note that regular maintenance is straightforward, so you can rely on consistent water quality without the hassle.

Cost-Effective and Eco-Friendly Solution

Investing in the 32,000 Grain Autotrol Water Softener can lead to significant savings on soap and detergent due to its water-softening capabilities. Softened water requires less soap for effective cleaning, which means your household expenses reduce over time. Additionally, this system promotes a more eco-friendly lifestyle, so you’re not only saving money but also reducing your environmental impact because you use fewer harsh chemicals.
