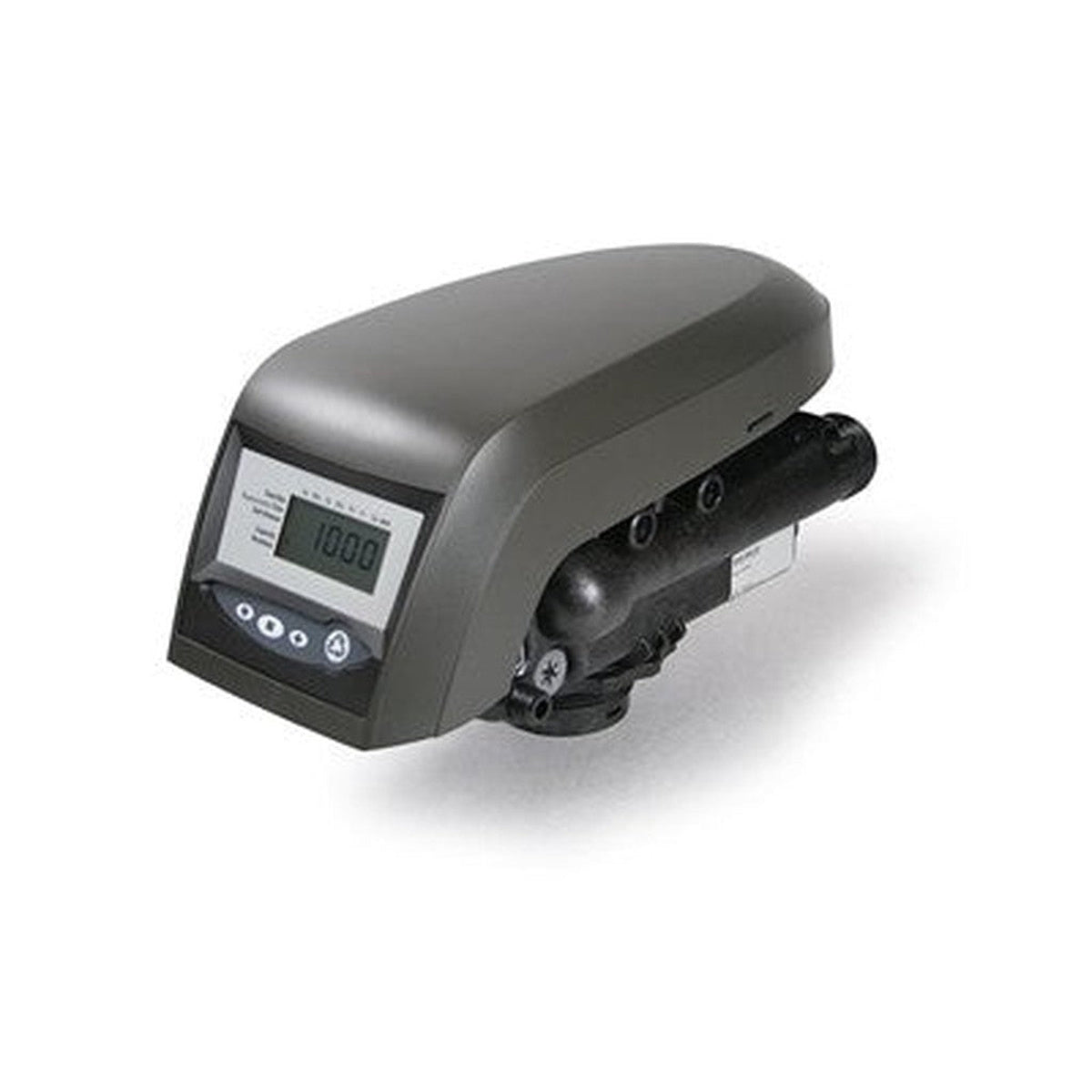

Pentair Autotrol Logix 268 Prefo w/760

Autotrol Logix 268 Prefo w/760 Dem Ctrl

The Pentair Autotrol Logix 268 Performa with 760 Control is a sophisticated water softening system designed for both residential and light commercial applications. Below is a detailed description of the Pentair Autotrol Logix 268 Performa with 760 Control, its functions, and applications:

Overview:

• Model: Pentair Autotrol Logix 268 Performa w/ 760 Control
• Purpose: Primarily used for water softening applications to remove hardness minerals from water, ensuring soft water for various uses.
• Components: Comprises the Autotrol 268 Performa control valve and the 760 Logix electronic control.

Autotrol 268 Performa Valve:

Functionality:

• Manages the flow of water through the water softening system.
• Directs water through the resin bed and controls the regeneration cycle.

Features:

• High flow rates to accommodate various system sizes and water demands.
• Efficient operation for optimal water softening performance.
• Durable construction for long-term reliability.

760 Logix Electronic Control:

Functionality:

• Automates the operation of the water softening system.
• Allows for scheduling and automation of regeneration cycles based on water usage and hardness levels.

Features:

• User-friendly interface for easy programming and operation.
• Advanced monitoring and diagnostic features for system performance assessment.
• Battery backup to maintain system settings during power outages.

System Operation:

1. Water Softening:

   • Hard water enters the system and passes through a resin bed.
   • Calcium and magnesium ions are exchanged for sodium ions, softening the water.
   • Softened water is then supplied to the household or facility.

2. Regeneration:

   • The 760 Control schedules and automates the regeneration process.
   • The resin bed is recharged with sodium ions to continue providing soft water.
   • Efficient regeneration ensures minimal water and salt usage.

Applications:

• Residential Use: Provides soft water for household applications, preventing scale buildup, improving appliance efficiency, and enhancing water quality for bathing, cleaning, and other uses.
• Light Commercial Use: Ideal for light commercial settings where soft water is essential for operations, such as in small restaurants, hotels, and other businesses.

Installation and Maintenance:

• Installation: Should be installed by a qualified technician to ensure proper setup and operation.
• Maintenance: Regular maintenance is essential for optimal performance and longevity. This includes checking the system settings, ensuring salt levels are adequate, and monitoring system performance.

In essence, the Pentair Autotrol Logix 268 Performa with 760 Control is a robust and efficient water softening system that offers automated operation, high performance, and versatility for various residential and light commercial applications. Proper installation, setup, and maintenance are crucial for maximizing the benefits of the system and ensuring a consistent soft water supply.
