Understanding the Key Differences Between Deep Wells and Shallow Wells for Home Water Supply
Choosing (or troubleshooting) a private well starts with one question: Are you on a shallow well or a deep well? The answer affects your pump, pressure, water quality risks, and the treatment stack you’ll need. This guide breaks down the essentials—then links directly to proven, homeowner‑friendly solutions.
Water Softener Sizing Chart RO Sizing Calculator Well Water System Builder
Deep vs. Shallow Wells — Side‑by‑Side Snapshot
| Dimension | Shallow Wells | Deep Wells |
|---|---|---|
| Typical construction | Dug or driven wells tapping the water‑table (unconfined) aquifer; closer to land surface. :contentReference[oaicite:0]{index=0} | Drilled wells (often hundreds of feet) into deeper/confined or bedrock aquifers. :contentReference[oaicite:1]{index=1} |
| Contamination vulnerability | Higher—closest to surface inputs (rain runoff, septic, ag). :contentReference[oaicite:2]{index=2} | Lower to surface contaminants, but can contain natural minerals (iron, Mn), H2S, hardness; regionally, arsenic can occur. :contentReference[oaicite:3]{index=3} |
| Common pump | Jet pump (above ground) with suction; practical limit ~25 ft water‑level lift. :contentReference[oaicite:4]{index=4} | Submersible pump (in‑well) pushes water up—standard for deep private wells. :contentReference[oaicite:5]{index=5} |
| Yield & reliability | More variable seasonally; can run low in droughts if water table drops. :contentReference[oaicite:6]{index=6} | Often steadier yield/pressure if aquifer is productive; still subject to drawdown with heavy pumping. :contentReference[oaicite:7]{index=7} |
| Typical issues | Bacteria, nitrates, turbidity, pesticides (surface influence). :contentReference[oaicite:8]{index=8} | Hardness, iron/manganese, hydrogen sulfide; some regions: arsenic. :contentReference[oaicite:9]{index=9} |

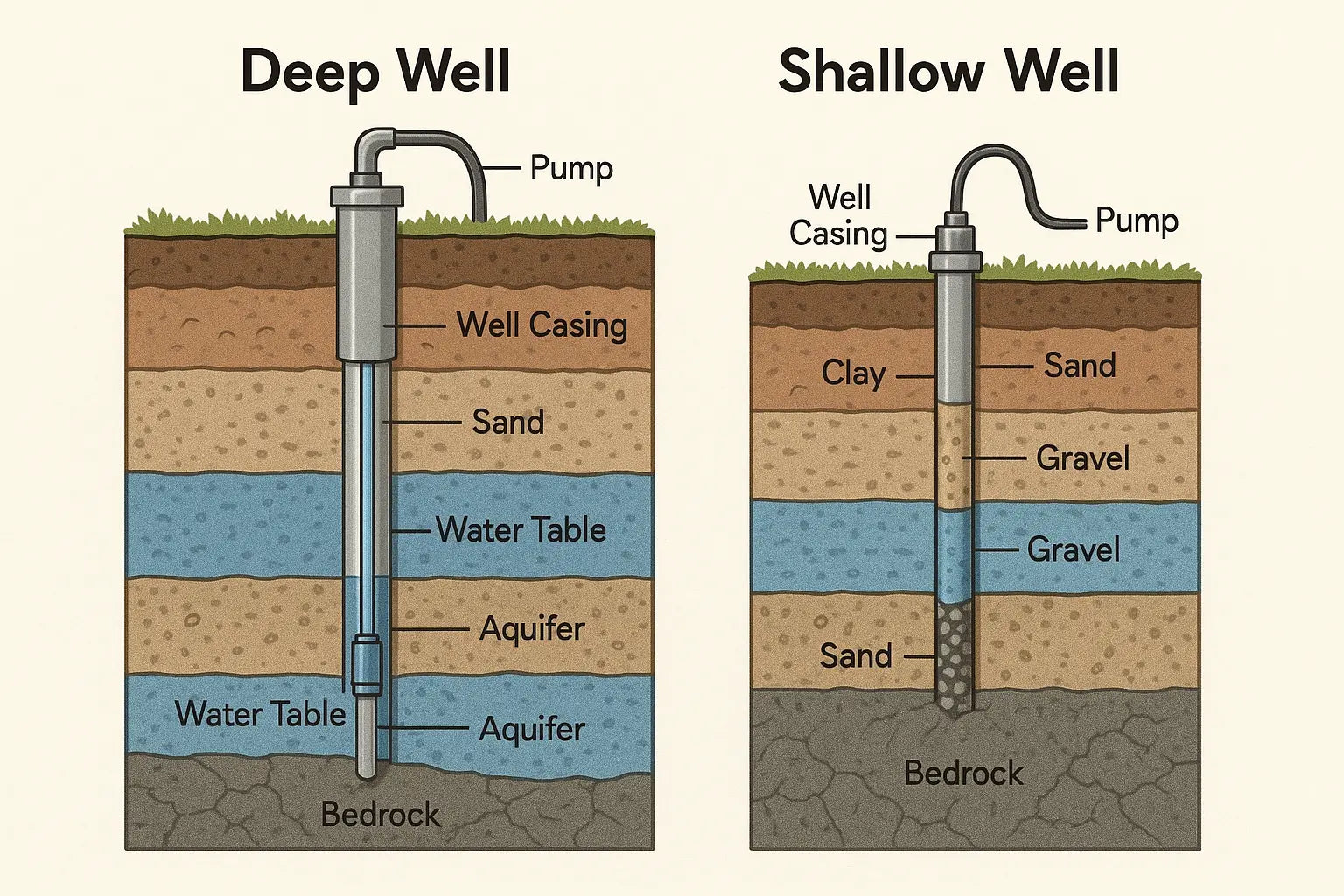

What “Shallow” and “Deep” Really Mean
There isn’t a single nationwide depth cutoff. Instead, think in terms of how the well is built and which aquifer it taps:
- Dug/driven (shallow) wells: Larger diameter or small‑diameter driven pipe screened into sands/gravels near the surface—these draw from the unconfined water‑table aquifer and are more exposed to surface contamination. :contentReference[oaicite:10]{index=10}
- Drilled (deep) wells: Narrower boreholes, steel or PVC casing, grouted, penetrating deeper (often bedrock) aquifers with a sealed sanitary wellhead. :contentReference[oaicite:11]{index=11}
Location & geology dominate: a “deep” well in one region can be “shallow” in another. The USGS and EPA emphasize siting, sanitary construction, and casing/grout to keep contaminants out. :contentReference[oaicite:12]{index=12}
Water Quality Differences to Expect
Shallow wells — closer to the surface, higher vulnerability
- Microbes (total coliform/E. coli) and nitrates are common concerns; test annually at minimum. :contentReference[oaicite:13]{index=13}
- Sediment/turbidity after heavy rains or pump cycling.
- Pesticides/herbicides possible in agricultural settings. :contentReference[oaicite:14]{index=14}
Deep wells — more stable, but mineral issues are typical
- Hardness, iron, manganese (staining/taste). :contentReference[oaicite:15]{index=15}
- Hydrogen sulfide (H2S) “rotten‑egg” odor—can be naturally occurring in reducing aquifers. :contentReference[oaicite:16]{index=16}
- Arsenic occurs regionally in bedrock aquifers (USGS found ~7% of sampled wells over the 10 µg/L MCL). :contentReference[oaicite:17]{index=17}
Yield, Drawdown & Reliability
Any pumping lowers the water level near the well (drawdown). Shallow wells may show seasonal drop‑offs; deeper wells can also decline if over‑pumped or during drought. Manage demand, size your pressure tank, and monitor levels if you see pressure surges or air. :contentReference[oaicite:18]{index=18}
Pumps & Pressure Systems: What Works Where
- Shallow wells: usually an above‑ground jet pump using suction; practical suction lift is about 25 ft to the water level (not well depth). If the static level falls below that, switch to a deep‑well setup or submersible. :contentReference[oaicite:19]{index=19}
- Deep wells: standard is a submersible pump set below the dynamic water level; it pushes water up and avoids suction limits. :contentReference[oaicite:20]{index=20}
Your Testing Schedule (Minimum)
The CDC/EPA recommend testing private wells at least once a year for total coliform bacteria, nitrates, TDS, and pH—plus additional tests based on local geology (e.g., arsenic, manganese, uranium). Test after floods, pump work, or when taste/odor/pressure changes appear. :contentReference[oaicite:21]{index=21}
Recommended Treatment Stacks (Pick Your Path)
Shallow‑well playbook (surface‑influenced)
- Sediment & carbon pre‑filter at point‑of‑entry: Pentek Big Blue.
- Disinfection barrier at POE (especially for private wells): VIQUA UV systems. :contentReference[oaicite:22]{index=22}
- Drinking water polish at the kitchen: 5‑Stage RO (50 GPD).
- Nitrates present? Keep the RO; consider anion‑exchange if whole‑home nitrate control is required. :contentReference[oaicite:23]{index=23}
Deep‑well playbook (mineral‑rich)
- Iron/H2S control at POE: Iron & Sulfur AIO Filter or catalytic media systems (Katalox/air injection).
- Whole‑home carbon for taste/odor/organics: Catalytic Coconut‑Shell Carbon.
- Softening for scale and soap performance: High‑Efficiency Water Softener.
- Drinking water polish: Under‑sink RO.
- Region has arsenic? ArsenicSafePlus at POE and/or RO at POU. :contentReference[oaicite:24]{index=24}
Not sure where to start? Share your lab results and usage, then use our tools: Softener Sizing Chart · RO Sizing Calculator. For live help, call 813‑369‑1317.
Quick FAQ
Is a “deep well” always better?
Not automatically. Deeper wells often have steadier yield and less surface influence, but they can carry natural minerals (iron, manganese), hydrogen sulfide, or region‑specific arsenic that still need treatment. :contentReference[oaicite:25]{index=25}
How do I know if my jet pump is the bottleneck?
If your static water level is near or below ~25 ft, a shallow‑well jet pump may struggle, especially at peak demand. Consider a deep‑well convertible jet setup or a submersible. :contentReference[oaicite:26]{index=26}
What maintenance should every well owner do?
Keep the sanitary cap intact, protect the casing, slope grade away from the well, and test yearly (total coliform, nitrates, TDS, pH) plus local contaminants. :contentReference[oaicite:27]{index=27}
Do I need UV if I already have RO?
RO is for a dedicated drinking/ice tap. UV at the point‑of‑entry protects the whole home’s plumbing and fixtures from microbial risks—especially on private wells. :contentReference[oaicite:28]{index=28}
Next Steps
Pick Your Softener Size Add a UV Barrier Install a Big Blue Prefilter Under‑Sink RO (50 GPD) Browse the Product Sitemap
Local codes and geology vary—work with a licensed well contractor and follow your state health department’s guidance for siting and testing. :contentReference[oaicite:29]{index=29}
Deep vs. Shallow Wells: What Homeowners Need to Know
The single best predictor of water problems in private wells is **which aquifer you tap**. Shallow wells draw from the water table near the surface (more vulnerable to runoff, septic, pesticides). Deep wells are drilled into deeper aquifers (less surface influence, more mineral issues like hardness, iron, manganese, hydrogen sulfide, and region‑specific arsenic). Use the tables and wizard below to pick your **treatment stack** and the **right sizes**.
Water Softener Sizing Chart RO Sizing Calculator HTML Product Sitemap
Deep vs. Shallow — Side‑by‑Side Snapshot
| Dimension | Shallow Wells | Deep Wells |
|---|---|---|
| Construction | Dug/driven, screened into the **unconfined water‑table aquifer** (near surface). | **Drilled** and cased (often hundreds of feet) into deeper/confined or bedrock aquifers. |
| Contamination vulnerability | Higher: surface runoff, septic, ag inputs, seasonal changes. | Lower to surface issues; more **mineral** chemistry (hardness, iron/manganese, H₂S), and some regions show **arsenic**. |
| Common pump | Jet pump (above‑ground) — practical suction limit ~**25 ft to the water level**. | Submersible pump (in‑well) — pushes water up; avoids suction limits. |
| Yield/seasonality | More variable; can struggle in drought if water table drops. | Often steadier if aquifer is productive; still subject to drawdown under heavy pumping. |
| Typical concerns | Microbes (coliform/E. coli), **nitrates**, turbidity; sometimes pesticides. | **Hardness**, **iron/manganese** staining, **H₂S** odor; regionally **arsenic**. |
Local geology matters. A “deep” well in one county can be “medium depth” in another. Always test before buying treatment.
Water Quality Differences You Can Expect
Shallow wells (surface‑influenced)
- Microbes (coliform/E. coli) — add **UV** at point‑of‑entry.
- Nitrates — treat drinking/cooking with **RO**.
- Turbidity — add a **Pentek Big Blue** prefilter.
Deep wells (mineral‑rich)
- Hardness — add a **whole‑home softener**.
- Iron/Manganese — add **Iron & Sulfur AIO** or catalytic media.
- H₂S “rotten‑egg” smell — AIO/catalytic media; carbon polish.
- Arsenic (regional) — **POU RO** and/or **ArsenicSafePlus** at POE.
Pumps & Pressure: Matching to Well Type
- Shallow wells: Above‑ground **jet pump** using suction; practical limit near 25 ft to the water level. If your static level falls below that, consider a deep‑well convertible setup or a submersible.
- Deep wells: **Submersible pump** set below dynamic level; pushes water up for reliable pressure and avoids suction limits.
Your Minimum Testing Schedule
Recommended Treatment Stacks
Shallow‑well playbook
- **Sediment prefilter**: Pentek Big Blue.
- **Carbon** for taste/odor: Catalytic coconut‑shell carbon.
- **UV (POE)**: VIQUA UV systems.
- **Softener** if hard: High‑Efficiency Softener.
- **POU RO** at kitchen: 5‑Stage RO (50 GPD).
Deep‑well playbook
- **Iron/H₂S control**: Iron & Sulfur AIO.
- **Carbon polish**: Catalytic carbon.
- **Softener** for hardness: High‑Efficiency Softener.
- **Optional UV (POE)**: VIQUA UV.
- **POU RO** at kitchen: Under‑sink RO options (or the 5‑Stage RO).
- **Arsenic present?** Add ArsenicSafePlus at POE and keep RO at POU.
Prefer a guided plan? See our Well Water System Builder (step‑by‑step).
Mini Sizing Wizard (Well Type → Stack + Sizes)
This is a homeowner‑friendly estimate. Confirm with a recent water test and the product page specs.
Quick FAQ
Is a deep well always better?
Not automatically. Deep wells are generally less surface‑influenced, but they often carry natural minerals (hardness, iron/manganese), hydrogen sulfide, or regional arsenic that still require treatment.
Jet pump vs. submersible—how do I choose?
Use a jet pump only if the static water level remains within ~25 ft; otherwise choose a submersible. Submersibles push water up and avoid suction limits.
What order should I install treatment?
Shallow wells: sediment → carbon → UV → softener (if needed) → RO at the sink. Deep wells: sediment → iron/H₂S filter → carbon → softener → optional UV → RO.
How often should I test?
Annually at minimum (coliform, nitrates, TDS, pH), plus local contaminants. Re‑test after floods, pump work, or changes in taste/odor/pressure.
Need help sizing or staging?
Pick Softener Size Size Your RO Browse Product Sitemap Call 813‑369‑1317
Local codes and geology vary—work with a licensed well contractor and follow your state health department’s guidance.
