Ultraviolet (UV) Equipment Replacements

Ultraviolet (UV) Equipment Replacements for Reliable Water Treatment

Ultraviolet (UV) water treatment systems are a highly effective and chemical-free method of disinfecting water by inactivating harmful microorganisms. Over time, the critical components of these systems—UV lamps and quartz sleeves—degrade or become damaged, reducing their effectiveness and risking water quality. Our Ultraviolet (UV) Equipment Replacements collection offers a comprehensive range of genuine replacement parts tailored for leading UV systems, including Trojan, Sterilight, Pura, UV Pure, and Hallet models. Whether you need replacement lamps, quartz sleeves, or accessory kits, this specialized selection ensures your UV water treatment system continues to perform optimally, safeguarding your water supply.

How Ultraviolet (UV) Water Treatment Works

UV water treatment leverages short-wavelength ultraviolet light (UV-C) to disrupt the DNA of bacteria, viruses, and protozoa, effectively neutralizing their ability to reproduce and cause infection. The system typically consists of a UV lamp encased in a quartz sleeve inside a reaction chamber through which water flows. As water passes by the UV light source, pathogens are exposed to germicidal radiation, resulting in disinfection without adding chemicals.

Over time, the UV lamp’s intensity diminishes, and quartz sleeves can accumulate deposits or become cracked. Both issues reduce UV transmittance, undermining disinfection efficiency. Timely replacement of these components is essential to maintain system efficacy and comply with health standards.

How to Choose the Right UV Replacement Components

Selecting the correct replacement parts involves matching the specific make and model of your UV system with compatible components. Our collection includes:

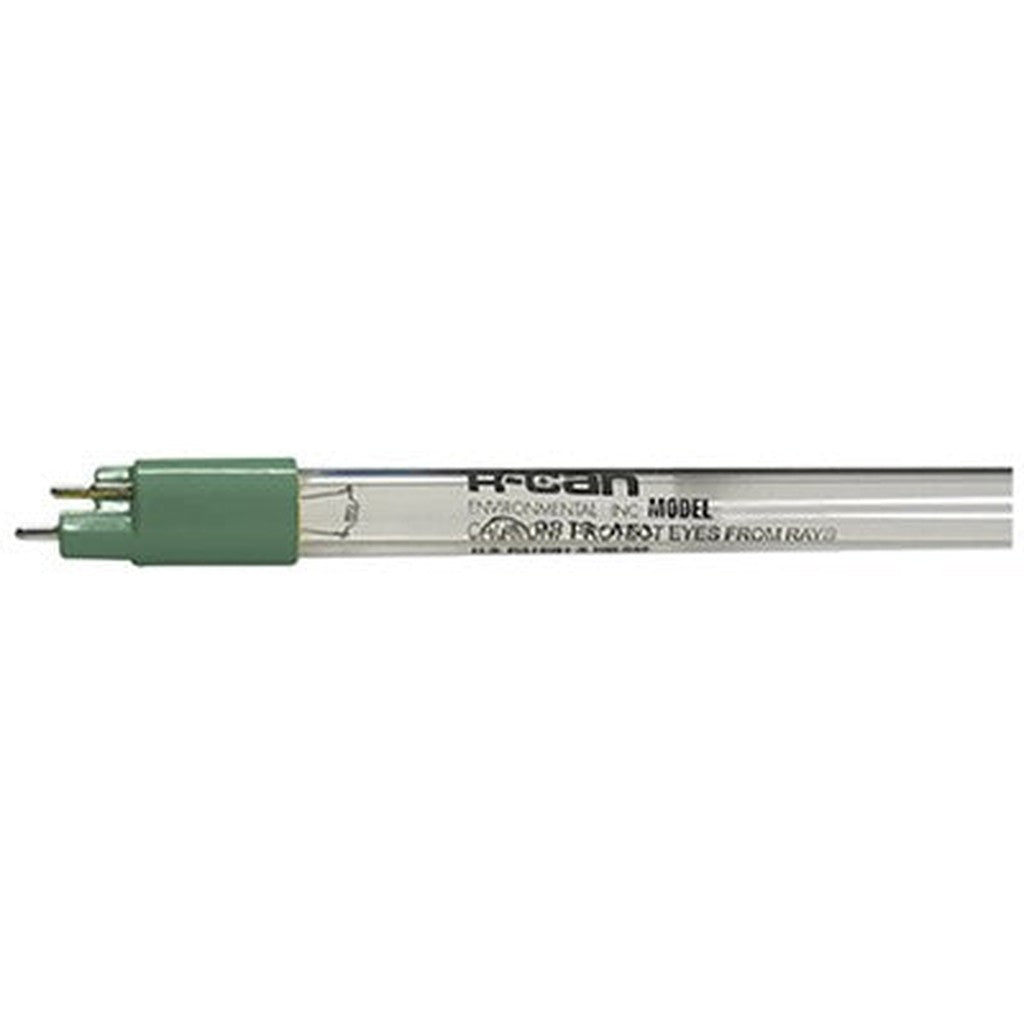

• UV Lamps: Replace UV lamps according to the manufacturer’s recommended service life, typically around 9,000 hours (approximately 12 months of continuous use). Lamps such as Trojan Lamp UVMAX-A (part #UV602803), Pura #10 UV replacement lamp (PURA-L10, 36002016), and UV Pure Rep. Lamps for Cactus X-8 models are all precisely engineered for their respective systems.

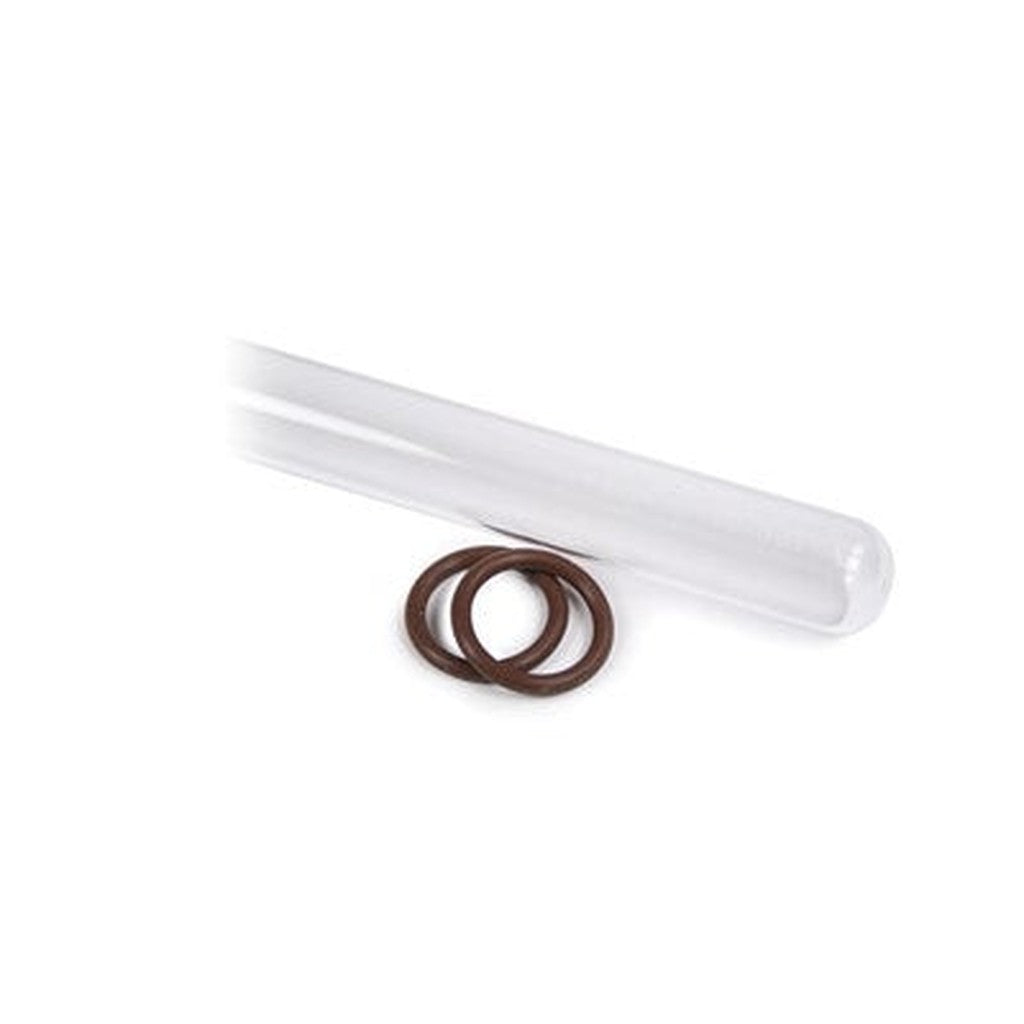

• Quartz Sleeves: Quartz sleeves protect the lamp and allow UV light to pass through while isolating it from water. Sleeves like Trojan Sleeve for UVMAX-A and Pura #20 Quartz Sleeve (PURA-QS20, 36003035) are designed to exact specifications, ensuring optimal UV transmission and durability.

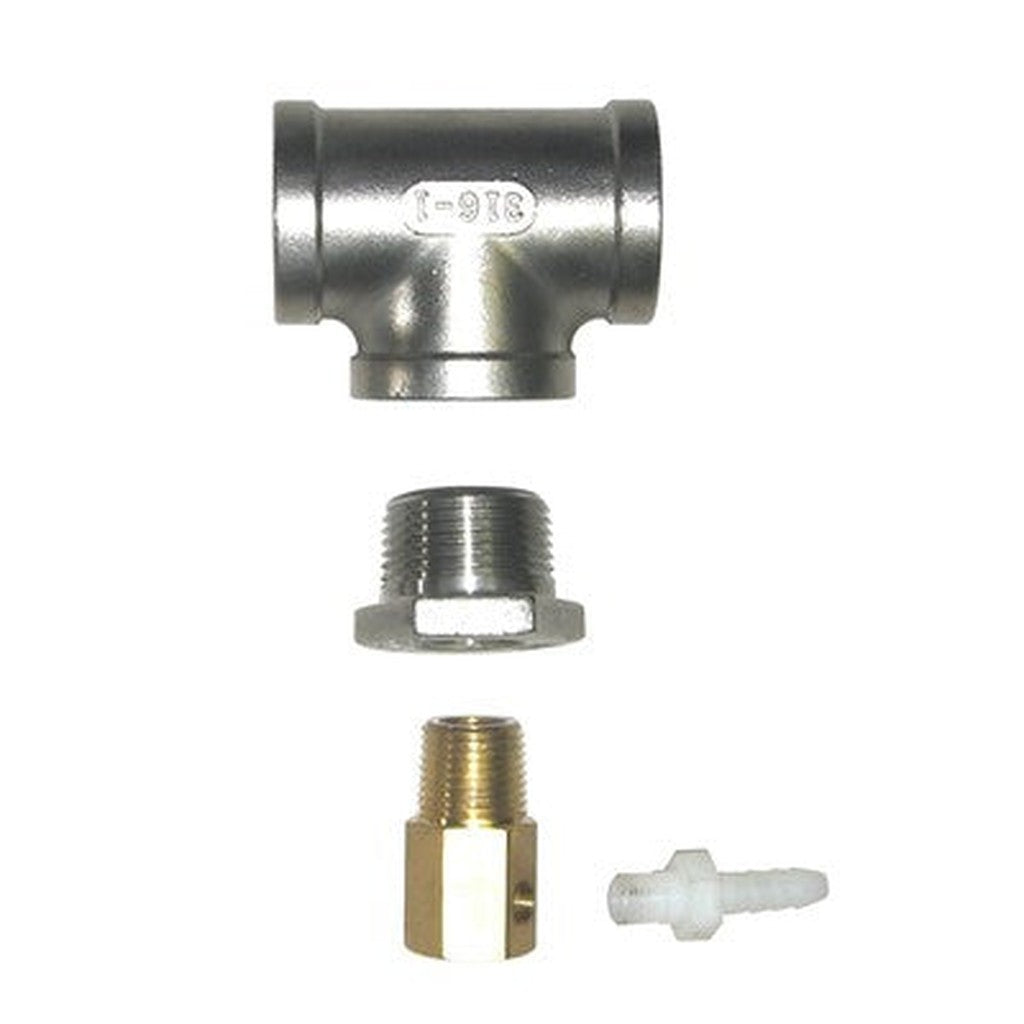

• Accessory Kits: For example, the Trojan Cool Touch Kit 3/4" for C/D Uts provides enhanced thermal protection to prolong lamp life and maintain system safety.

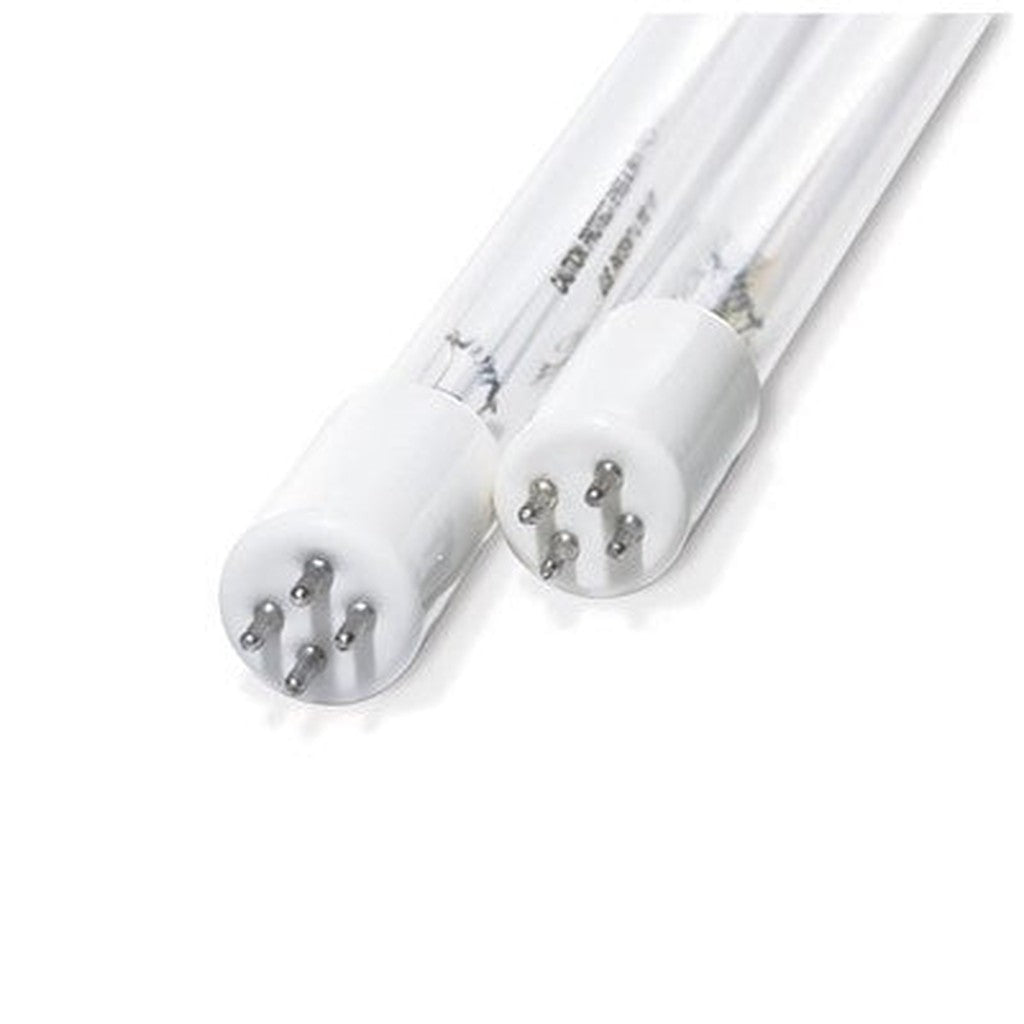

Always refer to your UV system’s model number and manufacturer recommendations. Using genuine parts, such as the Sterilight Dmd Quartz Sleeve for models SPV15 and SP740-HO or the Hallet lamp sets (E300165, C300065), guarantees compatibility, reliability, and warranty compliance.

Sizing and Compatibility Considerations

Each UV system is engineered with specific lamp lengths, diameters, and power ratings. For example, the Trojan UVMax-5B replacement lamps (part #UV602804) are uniquely sized for their model, while Pura’s #11 UV lamp and quartz sleeves are tailored to their equipment line. Improper sizing or mismatched components can lead to reduced UV dosage, increased maintenance, or system failure.

Key compatibility factors include:

• Lamp Wattage and Length: Lamps must match the wattage rating and physical length specified by the manufacturer—e.g., Hallet 13 & Upstream 10-75 lamp sets (E300165) are designed to fit those particular systems.

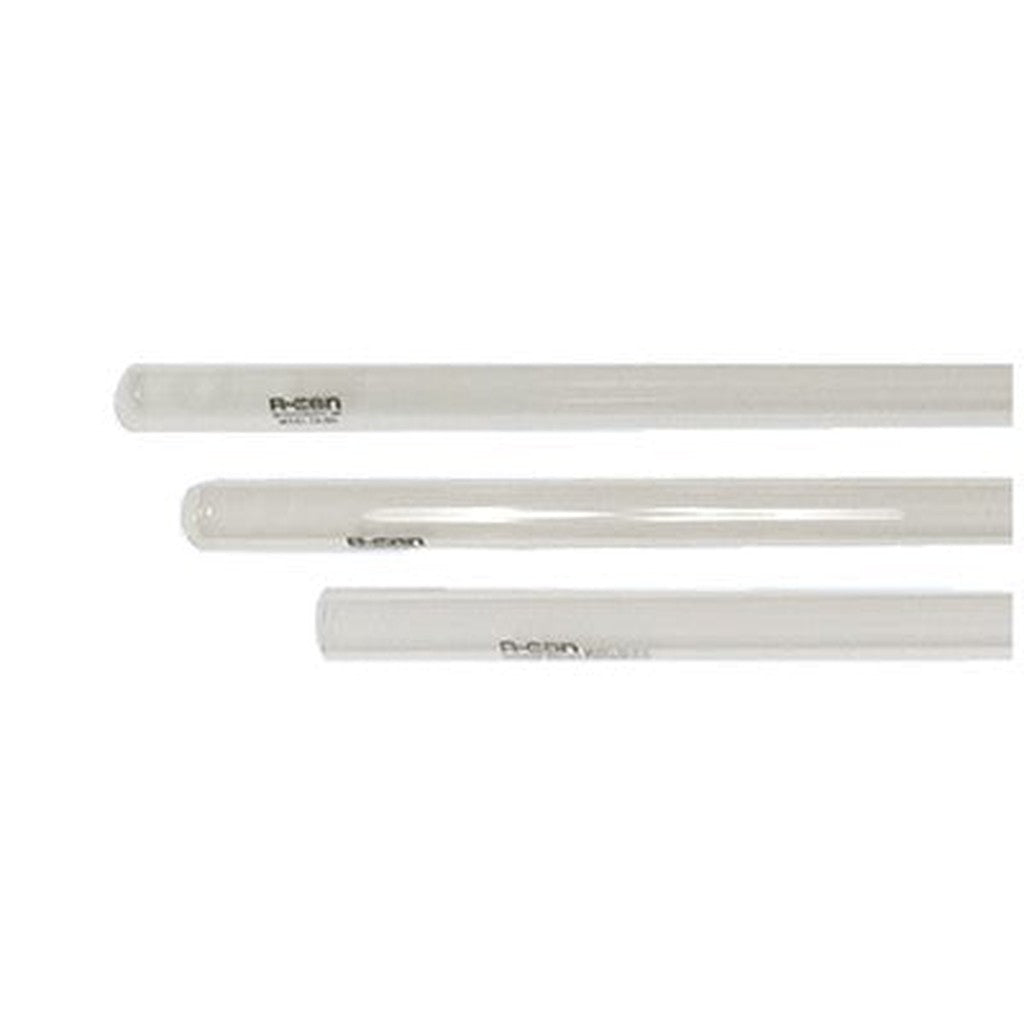

• Quartz Sleeve Dimensions: The inner and outer diameters, as well as the length of sleeves like the Sterilight Dmd Quartz Sleeve, must align precisely with the lamp and chamber to prevent water leakage and ensure effective UV transmission.
• Connection Types: Some accessories, such as the Trojan Cool Touch Kit, are model-specific and must be ordered accordingly to ensure proper fit and function.

Maintenance Tips for UV Equipment Replacements

Maintaining UV water treatment systems involves regular replacement of lamps and sleeves, as well as cleaning and inspection:

• Replace Lamps Annually: UV lamps lose effectiveness over time even if they appear lit. Follow the manufacturer’s recommendations and replace lamps like the UVMax, Pura, or UV Pure models yearly.
• Inspect and Clean Quartz Sleeves: Deposits such as scale or sediment can build up on sleeves, blocking UV light. Remove and clean sleeves with approved cleaning agents or replace them if damaged or cracked.
• Check Seals and O-Rings: Ensure seals are intact during maintenance to prevent leaks and maintain system pressure.
• Monitor System Indicators: Many UV systems have lamp life indicators or alarms to prompt replacements, enhancing safety and reliability.

Proper maintenance using genuine replacement parts like those in our collection extends system lifespan and preserves water treatment effectiveness.

Frequently Asked Questions

Q? How often should UV lamps be replaced?

UV lamps typically require replacement every 9,000 hours of operation, which is about one year of continuous use. Even if the lamp is still glowing, its UV output diminishes and will not effectively disinfect water beyond this period.

Q? Can I use generic quartz sleeves instead of brand-specific ones?

Using non-genuine quartz sleeves may result in improper fit, reduced UV transmittance, or mechanical failure. It is highly recommended to use manufacturer-specified sleeves, such as the Pura #20 Quartz Sleeve or Sterilight Dmd Quartz Sleeve, to ensure optimal performance and warranty compliance.

Q? What symptoms indicate that my UV equipment needs replacement parts?

Signs include decreased water clarity, system alarms or indicator lights signaling lamp failure, visible lamp flickering or non-illumination, water leakage around the quartz sleeve, or an increase in waterborne pathogens. Regular maintenance and adherence to replacement schedules prevent these issues.
