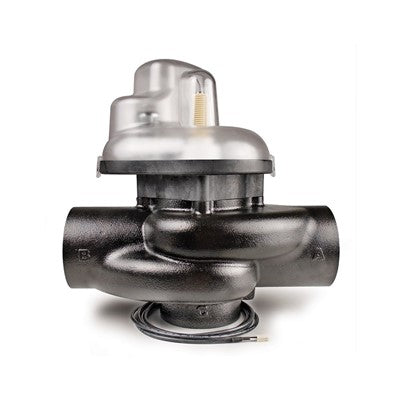

WS3 3" Motorized Alternating Valve

WS3 3" Motorized Alternating Valve Overview

The WS3 3" Motorized Alternating Valve is a crucial component designed for commercial and industrial water treatment systems using the Nelsen WS3 platform. Engineered with a large 3-inch bore, it enables the seamless alternating of water flow between twin or multiple tanks. This valve is specifically built to support high-demand applications where uninterrupted treated water supply is critical, such as in commercial softener and filter banks.

By integrating motorized actuation, the valve automatically switches service flow between tanks. This means one tank can regenerate while another remains online, preventing downtime and maintaining continuous access to treated water. The WS3 Motorized Alternating Valve essentially serves as the switching heart of no-hard-water and no-downtime commercial installations.

What Problem Does the WS3 Motorized Alternating Valve Solve?

Water treatment tanks require periodic regeneration or backwashing to restore their functional capacity. During these cycles, normal untreated water may flow if no alternate tank is available, causing a temporary loss of water treatment and potential disruption to users.

For commercial systems that must maintain an uninterrupted supply of treated water, this is unacceptable. The WS3 Motorized Alternating Valve solves this problem by directing flow to tanks that are in service and automatically switching to an alternate tank as needed. With this valve in place, water treatment operations continue seamlessly even during regeneration cycles.

Key Benefits Include:

• Continuous Treated Water Supply: Prevents service interruption by always keeping at least one tank online.
• Automatic Operation: Motorized actuation eliminates the need for manual switching.
• Large 3" Flow Path: Designed to handle high flow rates typical of commercial and industrial water treatment demands.
• Designed for WS3 Platforms: Compatible with WS3-series control valves for multi-tank configurations.

Sizing and Fit Guidance

The WS3 Motorized Alternating Valve features a 3-inch diameter flow path, making it suitable for large-scale commercial water treatment systems that require substantial water volume handling capacity. It is specifically designed to fit with the Nelsen WS3 series control valves.

Choosing the correct valve size is critical. This valve is intended for installations where the pipe size matches the 3-inch connection size. It is recommended that customers verify compatibility with the pipe diameter and the WS3 controller already installed on their system before ordering.

Ensuring proper sizing will facilitate easy incorporation into existing systems and help maintain optimal flow rates without pressure drops or flow restrictions.

Installation

Installing the WS3 3" Motorized Alternating Valve involves integrating it into the water treatment system's plumbing and control assembly. It is typically connected inline between the incoming water source and the treatment tanks.

• Prior to installation, ensure the system is completely powered off to prevent electrical hazards.
• Verify that the piping system uses 3-inch diameter connections to match the valve.
• Mount the valve securely, accounting for its shipping weight of approximately 3.8 kilograms including the motor drive.
• Connect the motorized actuator to the WS3 control system to enable automatic switching functionality.
• Test the valve operation after installation by cycling through multiple switching sequences to confirm reliable performance.

Proper installation and electrical connections according to the WS3 platform guidelines are essential to maximize the valve's performance and longevity.

Maintenance

Routine maintenance helps ensure the WS3 Motorized Alternating Valve continues to operate reliably in commercial water treatment environments. Recommended maintenance tasks include:

• Regular inspection for signs of leakage, corrosion, or physical damage.
• Checking the motorized actuator and electrical wiring for secure connections and proper function.
• Cleaning valve components to remove sediment buildup or debris that could impede flow.
• Periodically operating the valve through its switching cycle to verify mechanical integrity and motor responsiveness.

Routine maintenance supports uninterrupted water treatment by keeping the valve’s switching mechanism in optimal condition, reducing the risk of unexpected downtime.

Frequently Asked Questions

Is the WS3 Motorized Alternating Valve compatible with any water treatment system?

This valve is specifically designed to function with the Nelsen WS3 platform and must be paired with WS3-series control valves for proper operation in twin or multi-tank configurations.

What pipe size is required for installation?

The valve is designed for 3-inch diameter piping, suited for commercial and industrial installations requiring high flow capacity.

Does the valve require manual intervention for switching tanks?

No. The motorized actuation provides automatic switching, eliminating the need for manual adjustment during tank regeneration cycles.

Can this valve be used in a single-tank system?

No. Its purpose is to enable uninterrupted service via alternating flow between multiple tanks; it is not intended for single-tank setups.

What is the shipping weight of the valve and motor assembly?

The combined valve body and motor drive unit weigh approximately 3.8 kilograms.
