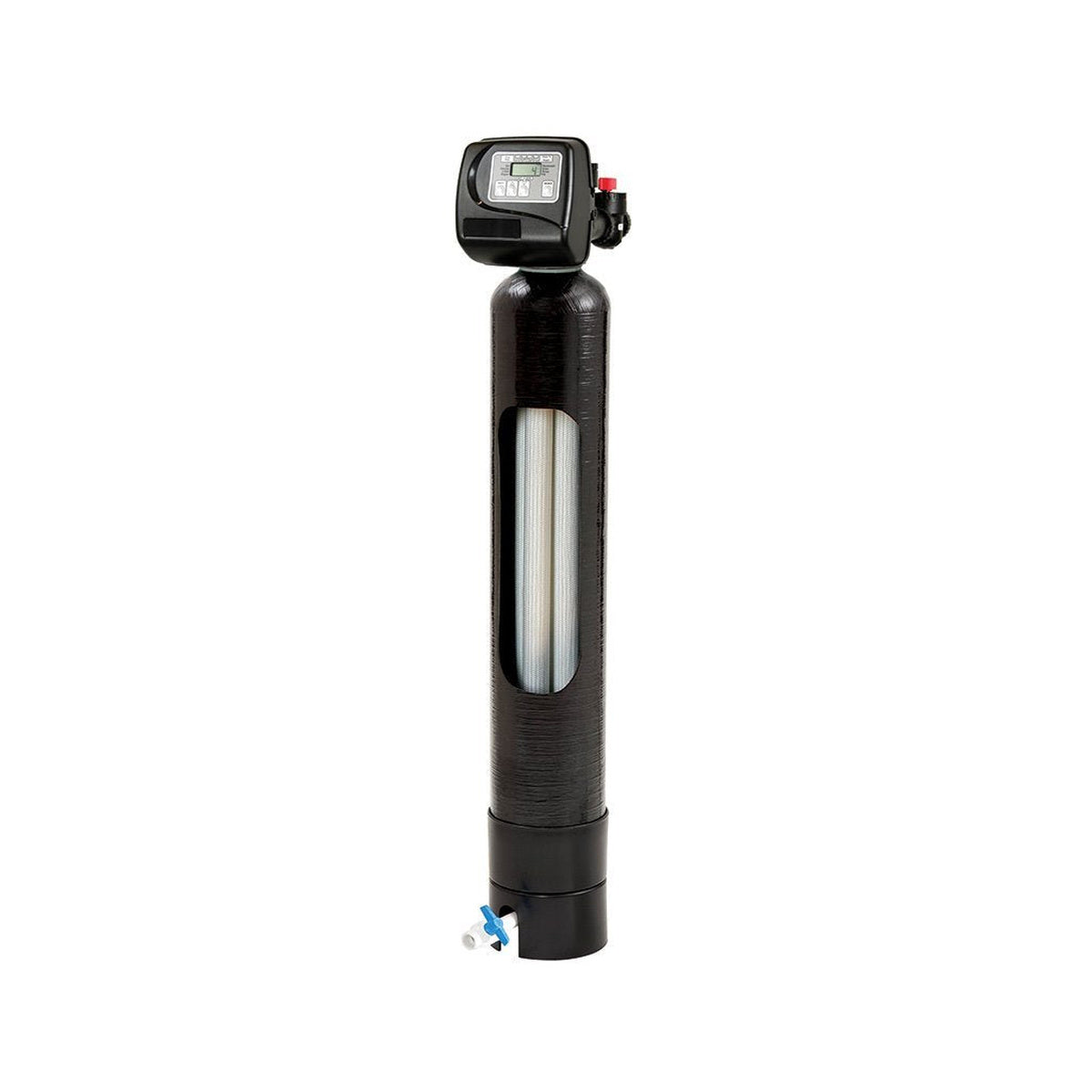

Poly Ultrafiltration Sys

The Nelsen Poly-UF™ Ultrafiltration System brings membrane-grade filtration to residential and light-commercial water treatment, delivering protection down to an exceptional 0.02 micron at service flow rates up to 12 GPM. Built around ENPRESS' patented and industry-exclusive liner design, the internal UF module captures contaminants that conventional cartridge and media filters simply can't reach—colloids, bacteria, cysts, viruses, turbidity, tannins, and fine particulate—making it one of the most capable polishing technologies available for whole-home use.

Membrane technology

At the heart of the system is a patented polysulfone-based Outside/In ultrafiltration membrane, NSF 61 certified and engineered for turbidity reduction, cyst reduction, and fine-sediment filtration applications. Flow runs from the outside of the fibers inward, which minimizes the risk of deep clogging and allows the membrane surface to be cleaned simply with water and/or air. Its high surface-area-to-volume ratio enables a compact vessel, and the non-biodegradable membrane offers superior mechanical and chemical resistance. Because the high-surface-area UF bundles operate on normal line pressure, the system runs with low waste discharge during backwash and cleaning and maintains low pressure drop even at high service flow rates.

• Filtration down to 0.02 micron at up to 12 GPM
• Reduces bacteria, cysts, viruses, turbidity, tannins, and colloids
• NSF 61 certified polysulfone Outside/In membrane
• BioVir certified and tested for log reduction
• "C-Series" control valve for automatic daily membrane backwashing
• Standard bottom drain opening for easy tank drainage and cleaning

The Poly-UF™ works beautifully as a final polishing stage or on water-reclamation systems handling rainwater or grey water, and it provides a microbiological barrier that holds up during power outages and intermittent-power situations. Because ultrafiltration removes particles physically rather than chemically, it adds nothing to the water and changes neither taste nor mineral content, making it an ideal partner downstream of softening or sediment pre-filtration. Placing coarser pre-filtration ahead of the module also keeps larger debris off the membrane surface, which protects the fibers and stretches the intervals between deeper cleanings. This residential/light-commercial package pairs the polymeric ultrafiltration vessel with the C-Series valve for hands-off daily membrane maintenance, and the tank's standard bottom drain makes draining and cleaning straightforward. Choose your plumbing adapters separately to match the connections at your installation. For homeowners and facilities seeking absolute, sub-micron assurance against microbiological and particulate contaminants—without the maintenance burden of disposable cartridges—the Nelsen Poly-UF™ is a genuinely standout solution.
