Nelsen Corporation

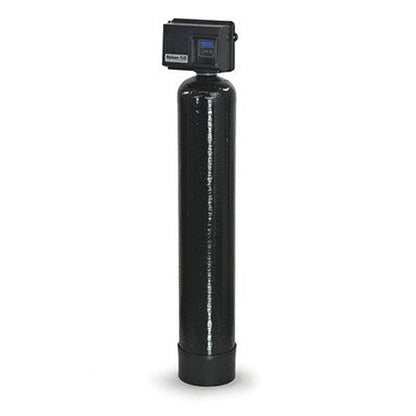

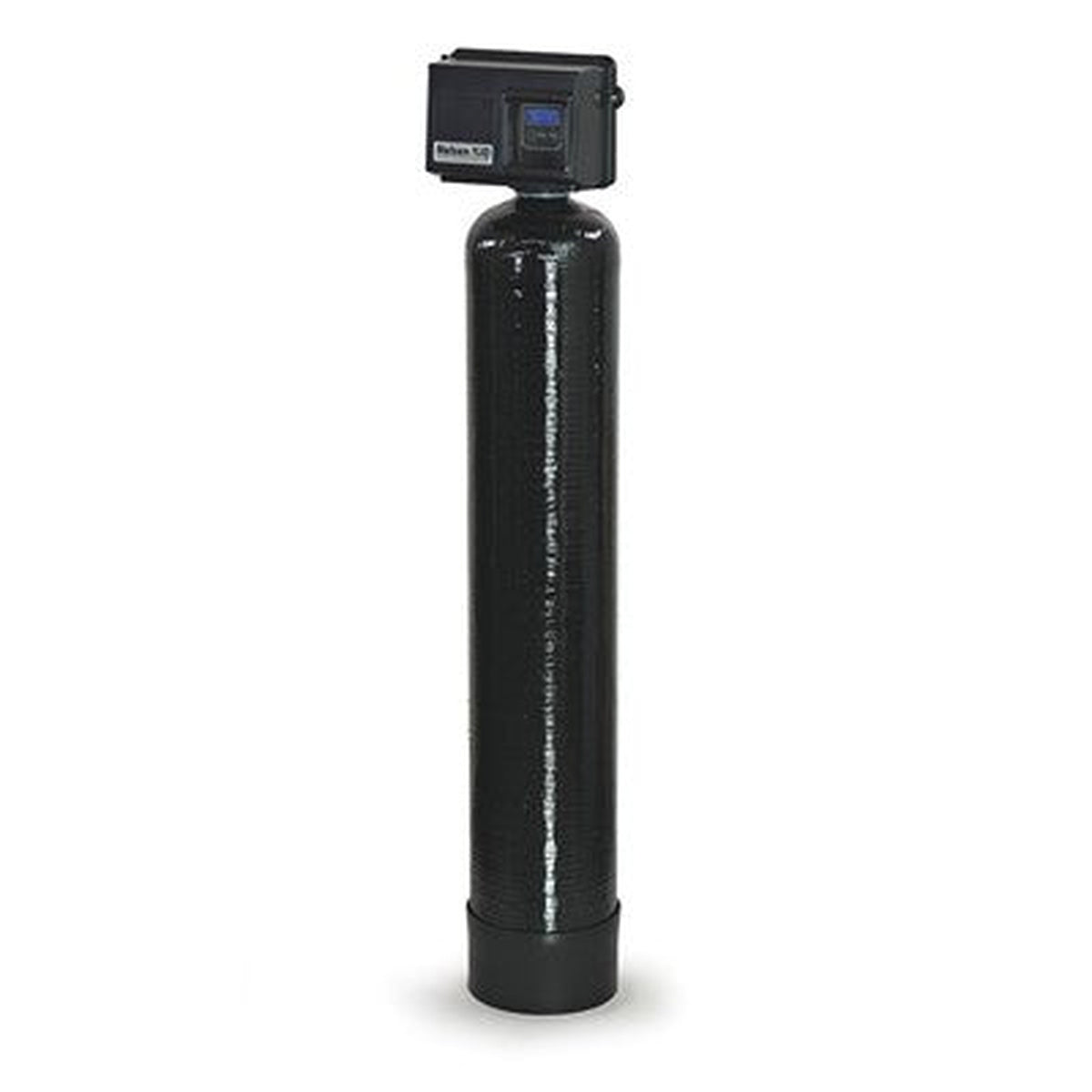

AIO 13"x54" Sulfur Filter System
AIO 13"x54" Sulfur Filter System
Couldn't load pickup availability
- Free shipping in the USA
- 90-day returns
- Secure checkout
A complete whole-house air-injection filter. One price includes everything listed below.
What's in the box
| Size | Mineral tank | Media | Control valve |
|---|---|---|---|
| 13" x 54" | 13" x 54" | sulfur-removal filter media (catalytic carbon blend) | Fleck 2510SXT air-injection valve |
- Control valve: Fleck 2510SXT air-injection valve with built-in air injection.
- Bypass: 3/4" bypass valve (included).
- Mineral tank: black fiberglass-wrapped mineral tank with support bed and distributor.
- Media: sulfur-removal filter media (catalytic carbon blend), sized to the tank.
- Also included: 1" plumbing adapters, install and service manuals.
- Ships pre-built, ready to install, free in the US.
How it works
The valve draws a pocket of air into the top of the tank. Water passes through the air, which oxidizes iron, manganese and hydrogen sulfide into particles, and the media bed filters them out. Every day the valve backwashes the bed, sends the trapped particles to drain and refreshes the air pocket.
Media benefits
- Removes hydrogen sulfide: no rotten-egg smell
- Stops black staining on fixtures and silverware
- Daily automatic backwash keeps the bed clean
- Air injection oxidizes iron, manganese and sulfur with plain air, so no chemicals or chlorine are added
Why this system costs what it does
| This system | Typical lower-priced kits | |
|---|---|---|
| Iron and sulfur treatment | Air injection: oxidizes with plain air, no chemicals | Often chlorine or permanganate feed, or no oxidation step |
| Filter design | Automatic daily backwash keeps the media bed clean | Often a non-backwashing upflow head or a cartridge housing |
| Bypass valve | 3/4" bypass included | Often not included or an extra option |
| Media | Named media, sized to the tank | Media type or amount often not stated |
| Delivery | Ships pre-built, ready to install | Often ships in pieces for you to assemble and load |
| Shipping | Free in the US | Free only above a minimum, or extra |
Not sure which size? Send a water test or tell us your symptoms and we will size it free.
The AIO 13" x 54" Sulfur Filter System is the highest-capacity sulfur unit in the standard AIO line, designed to clear hydrogen sulfide from well water in large, high-demand homes. This single-tank air injection oxidizing filter eliminates rotten-egg odor chemical-free, using oxygen and an automatic control valve to keep water fresh and pleasant at every tap throughout even the busiest household.
While in service, the system maintains an air pocket at the top of its large 13" x 54" mineral tank. As sulfur-laden water passes through the pocket, hydrogen sulfide is oxidized and captured by the filter media bed. The Fleck 2510SXT control valve automatically backwashes the system daily, flushing accumulated sulfur to the drain and replenishing the air pocket so treatment continues without intervention, salt, or chemicals for the homeowner to manage.
Specifications
- 13" x 54" black Structural mineral tank
- Fleck 2510SXT air injection control valve
- 3/4" bypass valve included
- Chemical-free hydrogen sulfide removal
- Automatic daily backwash regeneration
- Includes media and support bed, approximately 149.2 lbs
The 13" tank diameter provides the greatest capacity and service flow among the standard AIO sulfur systems, making it the right choice for large households or homes with strong sulfur odor and high water usage. Installed at the point of entry, it treats the whole house, removing the unpleasant smell from drinking, bathing, and laundry water. The included bypass valve eases service, and automatic salt-free regeneration keeps maintenance minimal. For serious sulfur problems in big homes, this AIO offers the capacity and reliability to deliver consistently fresh water.
At the top of the standard AIO sulfur range, this 13-inch system provides the service flow large, high-demand homes require to keep treatment effective even during peak usage. The Fleck 2510SXT control valve automates regeneration reliably and is widely supported for future service needs. Confirming your hydrogen sulfide level before sizing ensures this substantial capacity matches your water, and once installed, the system delivers consistent, chemical-free sulfur removal that eliminates rotten-egg odor throughout even the busiest household. Over the long run, the chemical-free design spares you the cost and handling of sulfur-treatment chemicals entirely.
