Fleck Motor, 24v, 50/60 1 Rpm, 90/91 Se

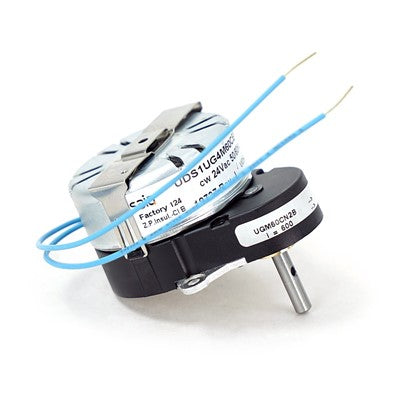

This genuine Fleck timer motor is a 24-volt, 1 RPM drive motor rated for 50/60 Hz operation, designed for the 90/91 SE series and listed under valve model 9500. As one of the small but essential drive components in a Pentair Fleck control valve, the motor turns the cam and gear train that advances the valve through its regeneration positions on the programmed schedule. When it runs smoothly, the valve indexes cleanly from service to backwash, brine draw, slow rinse, and refill; when it stalls, the cycle simply stops.

Where this motor fits

The 24V supply and 1 RPM output make this a direct service replacement where the original low-voltage SE-series timer motor has stalled, hummed without turning, or stopped advancing the regeneration cycle. Matching the correct voltage and RPM is critical: installing a mismatched motor will cause incorrect cycle timing, incomplete regeneration, and poor softening or filtration results. This motor pairs with control heads fed by a low-voltage transformer rather than direct line power.

• Voltage: 24V, compatible with 50/60 Hz systems
• Output speed: 1 RPM for proper cam advancement and cycle timing
• Engineered for the 90/91 SE series, listed under valve model 9500
• Genuine Pentair Fleck replacement part for a precise, factory-spec fit
• Lightweight at roughly 0.26 lbs, allowing simple bolt-in service
• Restores dependable, scheduled regeneration on SE-series controls

A drive motor that fails to rotate is one of the most common reasons a softener stops regenerating, leaving the resin bed exhausted and hard water passing through to the home. Telltale symptoms include a control head stuck in one position, audible buzzing with no movement, or a cycle that never completes. Because the motor is inexpensive relative to the disruption a failed regeneration causes, many installers keep a spare on hand.

Before replacing, confirm power is reaching the motor and that the cam and gears spin freely by hand, since binding elsewhere in the drive can imitate a dead motor. Always unplug the controller and place the valve in bypass before disconnecting the old motor and wiring in the new one. With the correct 24V SE motor installed, your Fleck 9500-series valve returns to quiet, reliable, on-schedule regeneration.
