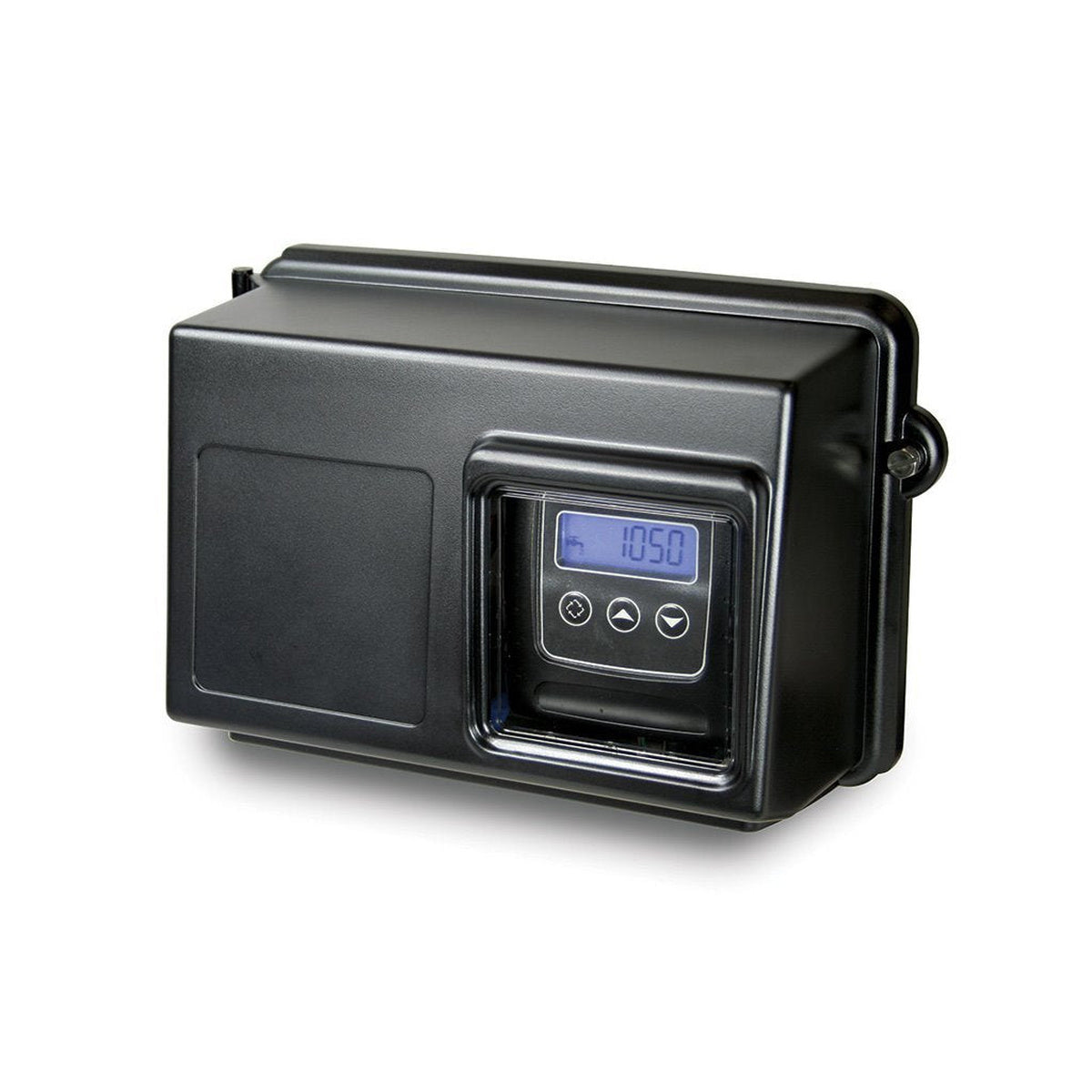

Fleck 2510 SXT Metered Control Head Valve

Fleck 2510 SXT Metered Control Head Valve

The Fleck 2510 SXT Metered Control Head Valve is a high-quality component used in water softening systems. Below is an explanation of its various aspects

• Purpose: The Fleck 2510 SXT Metered Control Head Valve is designed to control the flow of water through a water softening system. It measures water usage and automatically initiates regeneration cycles to ensure that the water softening system operates efficiently.
• Compatibility: It is compatible with various water softening systems and is suitable for both residential and light commercial applications.

Features:

1. Metered Control:
   • The valve is equipped with a meter that monitors water usage. This feature allows the system to regenerate only when necessary, conserving water and salt.
2. Digital SXT Controller:
   • The digital SXT controller provides an easy-to-use interface for programming and monitoring the system. It displays relevant information such as flow rates, current system status, and error messages.
3. Durable Construction:
   • The Fleck 2510 SXT is built with robust materials to ensure longevity and reliable performance.
4. Efficient Operation:
   • The control head valve ensures that the water softening system operates efficiently, providing consistent and reliable softened water.

Functionality:

• The Fleck 2510 SXT Metered Control Head Valve regulates the flow of water through the water softening system.
• It monitors water consumption and triggers the regeneration process as needed, ensuring that the resin bed is always ready to soften water.
• The digital controller allows users to program and adjust settings to suit their water usage patterns and hardness levels.

Maintenance:

• Regular maintenance, as outlined in the manufacturer's manual, is essential to keep the Fleck 2510 SXT Metered Control Head Valve functioning correctly.
• This may include checking for leaks, ensuring connections are secure, and monitoring system performance.

Conclusion:

In summary, the Fleck 2510 SXT Metered Control Head Valve is a crucial component in water softening systems, ensuring efficient operation, water and salt conservation, and consistent delivery of softened water. Proper installation, programming, and maintenance are vital for maximizing the benefits of this control head valve.

The Fleck 2510 SXT Metered Control Head Valve is a water softener control valve designed for residential and light commercial applications. Below is a description of its parts, features, applications, installation, and programming instructions:

Parts and Features:

1. Control Head Valve:

   • The control head valve is the central component that manages the flow of water through the water softening system.
   • It is equipped with a meter to measure water usage and initiate regeneration cycles as needed.

2. Digital Display:

   • The Fleck 2510 SXT features a digital SXT controller that provides easy programming and operation.
   • It displays the current status of the system, including flow rates, regeneration cycles, and error messages.

3. Bypass Valve:

   • Allows for the water supply to bypass the softening system for maintenance or troubleshooting.

4. Connector:

   • Used for connecting the control head valve to the mineral tank and brine tank.

Applications:

• The Fleck 2510 SXT is suitable for residential and light commercial water softening applications.
• It is used to remove hardness minerals from water, preventing scale buildup and improving the effectiveness of soaps and detergents.

Installation:

• Installation should be carried out according to the manufacturer's guidelines.
• It involves connecting the control head valve to the mineral and brine tanks and integrating it into the building's plumbing system.
• Proper installation ensures optimal performance and longevity of the water softening system.

1. Location:
   • Choose a dry, level, and non-freezing location to install the control head valve.
2. Connection:
   • Connect the control head valve to the mineral and brine tanks following the manufacturer's guidelines.
3. Plumbing:
   • Integrate the system into the building's plumbing, ensuring compliance with local plumbing codes.
4. Bypass Valve:
   • Install the bypass valve to allow for system maintenance without interrupting the water supply.

Programming Instructions:

1. Set Time and Day:
   • Use the digital display to set the current time and day.
2. Set Regeneration Time:
   • Program the regeneration time based on water hardness and usage.
3. Set Regeneration Frequency:
   • Adjust the regeneration frequency based on water usage to ensure optimal performance.
4. Monitor and Adjust:
   • Regularly monitor the system and adjust settings as needed to maintain water quality.

Instructions:

• For detailed installation and programming instructions, it is essential to refer to the manufacturer's manual provided with the Fleck 2510 SXT Metered Control Head Valve. The manual will offer step-by-step guidance and troubleshooting tips to ensure the successful setup and operation of the water softening system.
