Description

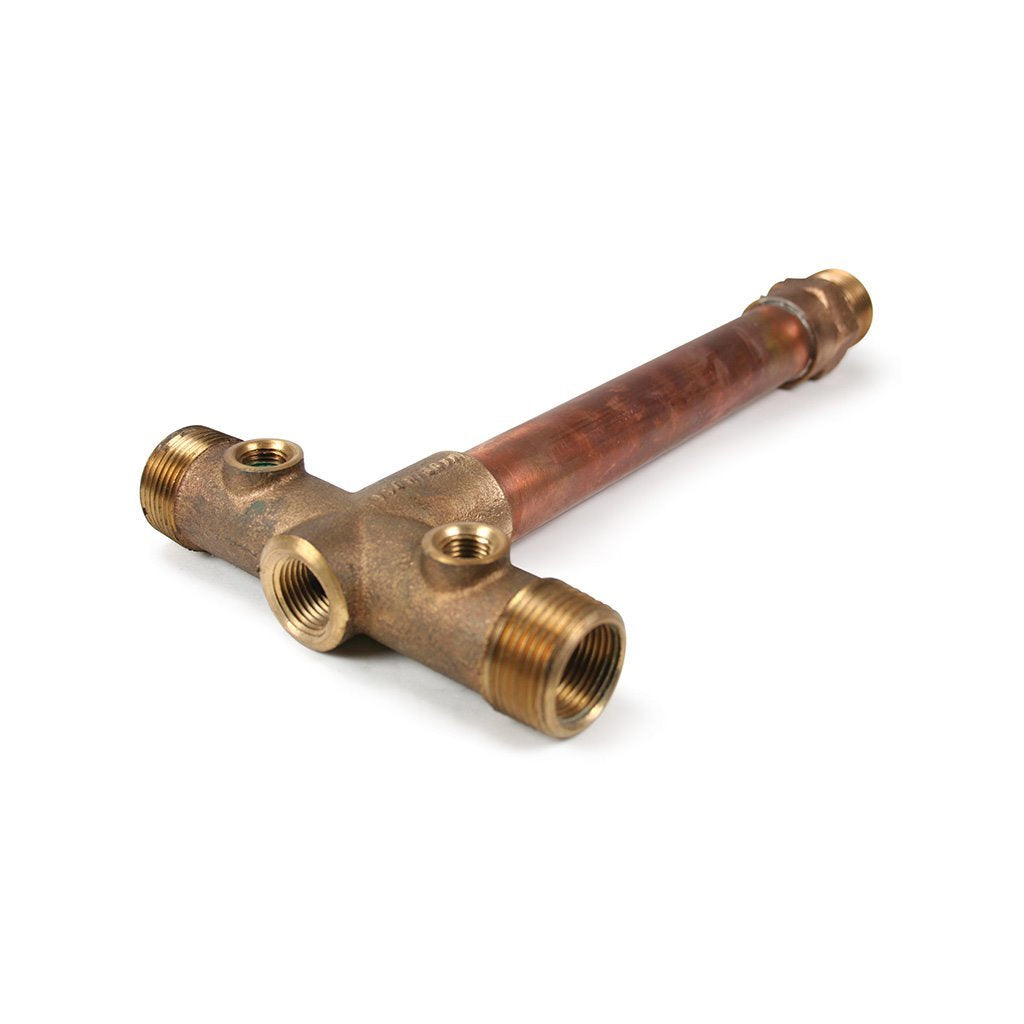

The Simmons TC200M-2 Fabricated Tank Cross is a lead-free 1" x 3/4" x 10" fitting outfitted with two drain taps, designed to serve as the central plumbing manifold for well pressure tanks. This compact, well-built cross consolidates the essential connections of a well system into a single, organized component, simplifying installation and making future service far easier than a patchwork of separate fittings.
A tank cross is the hub where the pressure tank, pump line, household supply, and system accessories all come together. The two drain taps on the TC200M-2 provide convenient ports for adding a pressure gauge, pressure switch, boiler drain, relief valve, or other accessories, giving the installer flexibility to build out a complete and serviceable pressure-tank package tailored to the system at hand. Having these tapped ports built into the cross means fewer additional fittings and a cleaner, more reliable assembly.
Installer-Friendly Features
- Fabricated tank cross sized 1" x 3/4" x 10"
- Two drain taps for mounting gauges, switches, and accessories
- Lead-free construction for potable water compliance
- Centralizes well-system connections into one organized fitting
- Simmons quality for dependable, long-lasting service
- Lightweight at 1.61 lbs for easy handling on the job
Lead-free construction makes the TC200M-2 suitable for potable water systems and compliant with modern plumbing requirements, an important and increasingly mandatory consideration for any drinking-water application. Using lead-free components throughout a potable system is not just good practice; it is required by current codes, and a quality fitting like this helps ensure your installation meets those standards without compromise.
Its 10" length and dual-tap configuration give installers ample room to arrange components cleanly, which pays off whenever maintenance, troubleshooting, or component replacement is needed down the road. A well-organized manifold makes it far easier to isolate the tank, read the gauge, or swap a pressure switch without disturbing the rest of the plumbing. Whether you are assembling a new well pressure-tank installation or rebuilding an aging manifold, the Simmons TC200M-2 provides a rugged, code-conscious foundation. It is a small component that plays an outsized role in keeping a well water system tidy, accessible, and reliable for the long term.
Overview
- 🇺🇸 U.S.-based support and expert assistance
- 🔧 Built with trusted, industry-standard components
- 🚚 Ships nationwide - freight-safe packaging
- 🏠 Ideal for residential and light-commercial systems
Specs (Typical)
| Max Operating Pressure | 125 psi |
|---|---|
| Max Water Temp | 100 °F |
| Electrical | 120 V AC |
| Flow Range | 5-45 GPM (model dependent) |
