Nelsen Corporation
CS AIO 13"x54" Katalox System
CS AIO 13"x54" Katalox System
Couldn't load pickup availability
- Free shipping in the USA
- 90-day returns
- Secure checkout
A complete whole-house air-injection filter. One price includes everything listed below.
What's in the box
| Size | Mineral tank | Media | Control valve |
|---|---|---|---|
| 13" x 54" | 13" x 54" | Katalox Light catalytic filter media | Connected Series air-draw metered valve with Bluetooth app |
- Control valve: Connected Series air-draw metered valve with Bluetooth app with built-in air injection.
- Bypass: bypass valve (included).
- Mineral tank: black fiberglass-wrapped mineral tank with support bed and distributor.
- Media: Katalox Light catalytic filter media, sized to the tank.
- Also included: 1" plumbing adapters, install and service manuals.
- Ships pre-built, ready to install, free in the US.
How it works
The valve draws a pocket of air into the top of the tank. Water passes through the air, which oxidizes iron, manganese and hydrogen sulfide into particles, and the media bed filters them out. Every day the valve backwashes the bed, sends the trapped particles to drain and refreshes the air pocket.
Media benefits
- Removes iron, manganese and hydrogen sulfide (rotten-egg smell) in one tank
- Handles high flow rates in a compact tank
- Long media life
- Backwashes the trapped particles to drain automatically
- Air injection oxidizes iron, manganese and sulfur with plain air, so no chemicals or chlorine are added
Why this system costs what it does
| This system | Typical lower-priced kits | |
|---|---|---|
| Iron and sulfur treatment | Air injection: oxidizes with plain air, no chemicals | Often chlorine or permanganate feed, or no oxidation step |
| Filter design | Automatic daily backwash keeps the media bed clean | Often a non-backwashing upflow head or a cartridge housing |
| Bypass valve | Included | Often not included or an extra option |
| Media | Named media, sized to the tank | Media type or amount often not stated |
| Delivery | Ships pre-built, ready to install | Often ships in pieces for you to assemble and load |
| Shipping | Free in the US | Free only above a minimum, or extra |
Not sure which size? Send a water test or tell us your symptoms and we will size it free.
The CS AIO 13"x54" Katalox System is a high-capacity, multi-contaminant filter from 's Connected Series AIO™ Plus line, rated at 80,000 grains. By combining air injection with premium Katalox-Light® media, it targets iron, manganese, and hydrogen sulfide together, making it a powerful all-in-one solution for challenging well water in larger homes.
The metered Connected Series valve pairs over Bluetooth with the free Legacy View app for iPhone and Android™, so you can program and monitor the system from your phone. Its AIO Plus design provides independently programmable air-draw and backwash cycles, letting you refresh the air pocket daily without an extra backwash to save thousands of gallons of water annually, and it releases the air charge slowly to protect the drain line. The system includes the Connected Series Air Draw Meter Control Valve, bypass valve, black polyglass mineral tank, plus Katalox-Light® media and support bed.
- 13" x 54" black polyglass mineral tank, 80,000-grain capacity
- Katalox-Light® media for iron, manganese, and sulfur
- Metered Connected Series Air Draw Control Valve with Bluetooth
- Free Legacy View app for iPhone and Android™
- Programmable air-draw and backwash, gentle air release
- Shipping weight: approximately 228.33 lbs

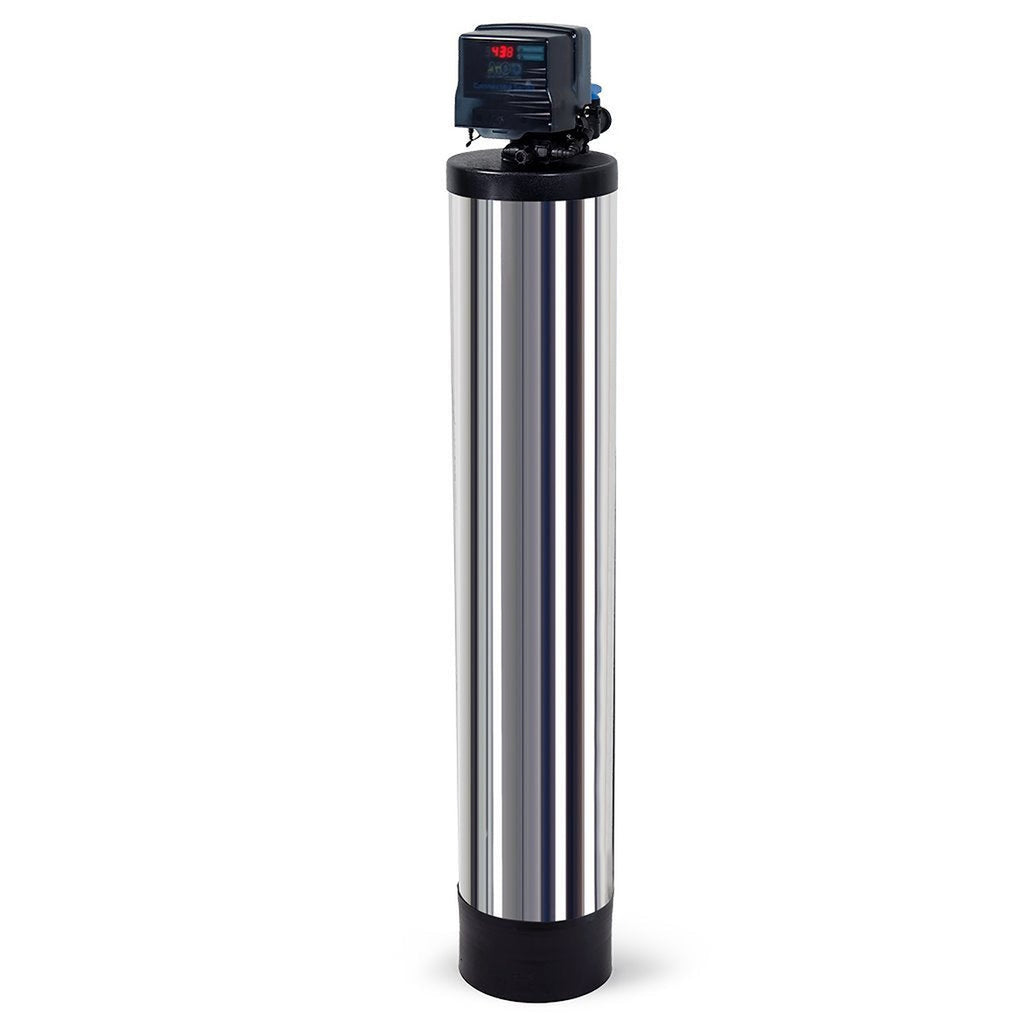

Air injection supplies the oxidation Katalox-Light® needs to convert dissolved metals into filterable solids, eliminating the need for chlorine or potassium permanganate. This high-capacity build is ideal for larger homes battling combined iron and manganese staining along with sulfur odor in a single tank. The metered valve draws a daily air pocket, oxidizes the contaminants, and backwashes the bed to drain as water use requires. Choose plumbing connections separately, and add the optional chrome tank jacket for a polished appearance.
Rated at 80,000 grains, this high-capacity Katalox-Light® system is built for larger homes whose wells combine iron, manganese, and sulfur in challenging amounts. Consolidating that treatment into one deep-bed tank simplifies both the installation and the homeowner's experience compared with chaining multiple single-purpose filters. The metered Connected Series valve, daily air-draw cycle, and Legacy View app together deliver comprehensive, chemical-free treatment with the efficiency and remote control that modern households expect. Consolidating iron, manganese, and sulfur treatment into one high-capacity tank also keeps the mechanical room uncluttered and the homeowner's maintenance routine simple.
