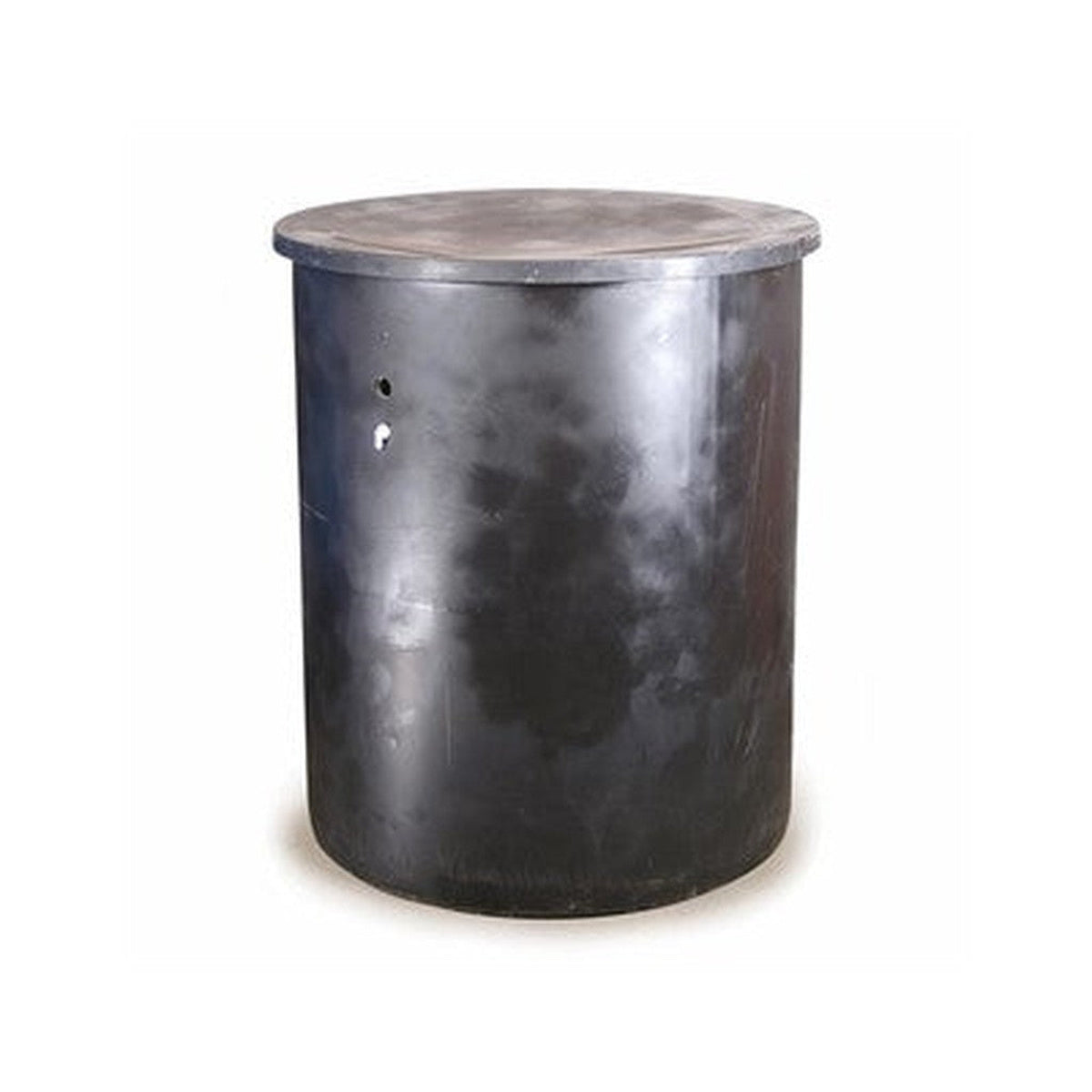

Comm Brine Tank Asm 50x60 w/2350 Safety

Engineered for high-volume commercial water softening, the Nelsen 50" x 60" Round Black Commercial Brine Tank Assembly is a large-capacity regeneration reservoir built to keep demanding systems running smoothly. This configuration comes complete with a 2350 commercial brine safety valve, a 900 commercial air check, and a 5" brine well, delivering the robust components heavy-duty applications require. Shipping as a matched assembly, it gives commercial installers a dependable, ready-to-plumb foundation.

The substantial 50x60 round tank holds a large quantity of softener salt, supporting the bigger resin beds and longer regeneration cycles typical of commercial and light-industrial installations such as restaurants, hotels, laundries, car washes, and multi-unit buildings. The black polyethylene construction stands up to constant salt contact and the rigors of commercial duty, year after year.

Commercial-Grade Components

• Large 50x60 round black polyethylene brine tank
• 2350 commercial brine safety valve for overflow protection
• 900 commercial air check to keep air out of the resin tank
• 5" brine well to house the safety valve and float
• Heavy-duty build for commercial duty cycles

The 2350 safety valve provides reliable overflow protection at commercial flow rates, while the 900 air check seals the brine line at the end of the draw to protect cycle integrity in larger systems where waterlogging would be especially costly. As with any softener, the brine tank holds the salt that dissolves into the concentrated brine used to recharge the resin and restore its hardness-removing capacity. Keep this commercial unit performing by maintaining adequate salt, monitoring for bridging, and cleaning out sediment on a regular schedule. From Water Softener Plus on the trusted Nelsen platform, this assembly is a heavy-duty foundation for commercial softening systems.

Before you install, it is worth reviewing how the pieces work together. Choosing the right brine tank is about more than capacity. The valve and pickup must match how your control valve draws and refills brine, which is why a pre-matched assembly like this one is so convenient. Once installed, simply keep the salt level a few inches above the water, watch for crusting along the walls, and your softener will continue delivering scale-free, spot-free water throughout the home.
