10000 GPD Comm RO Four 4x40 Membranes

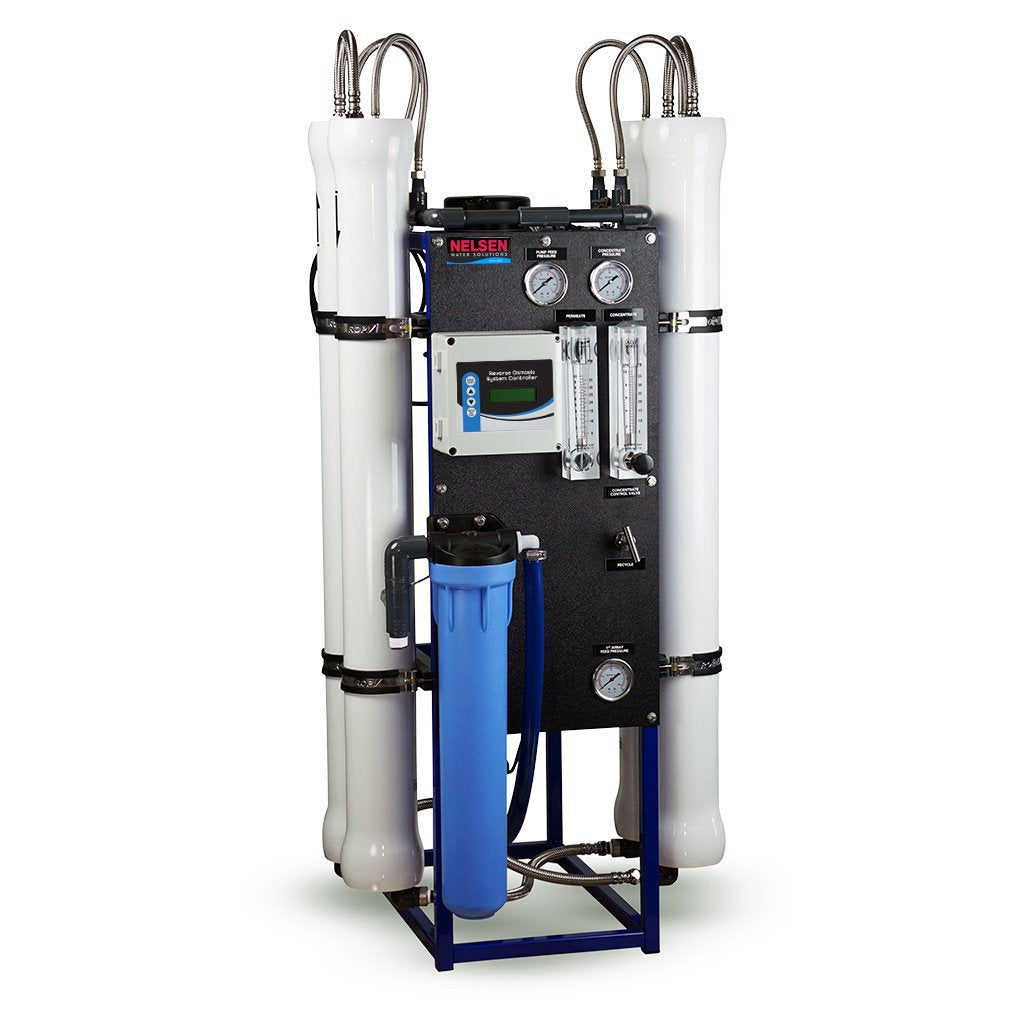

Stepping firmly into high-capacity territory, the Nelsen 10000 GPD Commercial Reverse Osmosis system uses four 4x40 membranes to deliver approximately 10,000 gallons per day of purified water. Built on a floor-stand frame with a 220 volt pump and a 110 volt solenoid, this unit is designed for facilities whose daily demand has outgrown smaller commercial machines and now requires substantial, reliable throughput.

Four-Membrane 440 Series Capacity

The defining feature of this system is its bank of four 4 inch by 40 inch membranes on the 440 series platform, working together to maximize production and rejection. As pressurized feed water crosses each semipermeable membrane, purified permeate is collected while concentrate flushes away dissolved solids, salts, and contaminants. More membranes mean more surface area, which translates into the higher recovery and output that large commercial operations depend on to keep purified water flowing through periods of peak demand.

• Roughly 10,000 gallons per day of purified water output
• Four 4 inch by 40 inch membranes on the 440 series platform
• 220 volt pump with a 110 volt control solenoid
• Heavy-duty floor-stand frame, about 250 pounds complete
• Engineered for high-volume commercial and process demand
• Delivers consistent low-TDS permeate at scale

This level of capacity supports larger restaurants and food production lines, multi-bay car washes, greenhouse and agricultural irrigation, bottling and beverage operations, and process or makeup water for boilers and cooling systems. At 10,000 gallons per day, the system can serve as the purified water backbone for an entire facility, reducing scale, spotting, and contaminant load across many downstream processes simultaneously.

Because membrane investment is significant at this scale, comprehensive pretreatment is essential. Feed water should be dechlorinated and clarified of sediment, and held within recommended hardness, temperature, and pressure ranges to protect the membrane bank and sustain production. A thorough water analysis before installation guides pretreatment design and accurate sizing. With disciplined prefilter maintenance and routine membrane performance monitoring, the Nelsen 10000 GPD floor-stand RO provides the dependable, large-volume purified water that high-demand operations require, offering a strong combination of output, recovery, and serviceability for facilities that treat purified water as a critical input to their daily business operations and growth. At this weight and capacity, planning the installation around a sturdy floor location, a clean 220 volt feed, and an unobstructed drain path pays dividends, and leaving generous clearance around the membranes makes periodic inspection and eventual element replacement far less labor-intensive for the service team.
