Autotrol Valve Parts: Precision Components for Reliable Water Treatment Control
The Autotrol Valve Parts collection offers a comprehensive selection of genuine replacement and upgrade components designed specifically for Autotrol control valves used in residential and commercial water treatment systems. This curated assortment features critical parts such as the AT1034263 Autotrol Brine Refill Control, Pentair Logix bleed valves, motor and cam assemblies, injectors, and essential seals, ensuring system efficiency, longevity, and peak performance. Whether you are maintaining a softening system, filtration setup, or other water conditioning equipment utilizing Autotrol valves, this category addresses all your repair and upgrade needs with precision-engineered components that meet original equipment manufacturer (OEM) standards.
How Autotrol Valve Parts Work Within Water Treatment Systems
Autotrol valves are the heart of many water treatment systems, regulating critical processes such as backwashing, regeneration, brine refill, and rinse cycles. Each part in this collection contributes to the valve’s function:

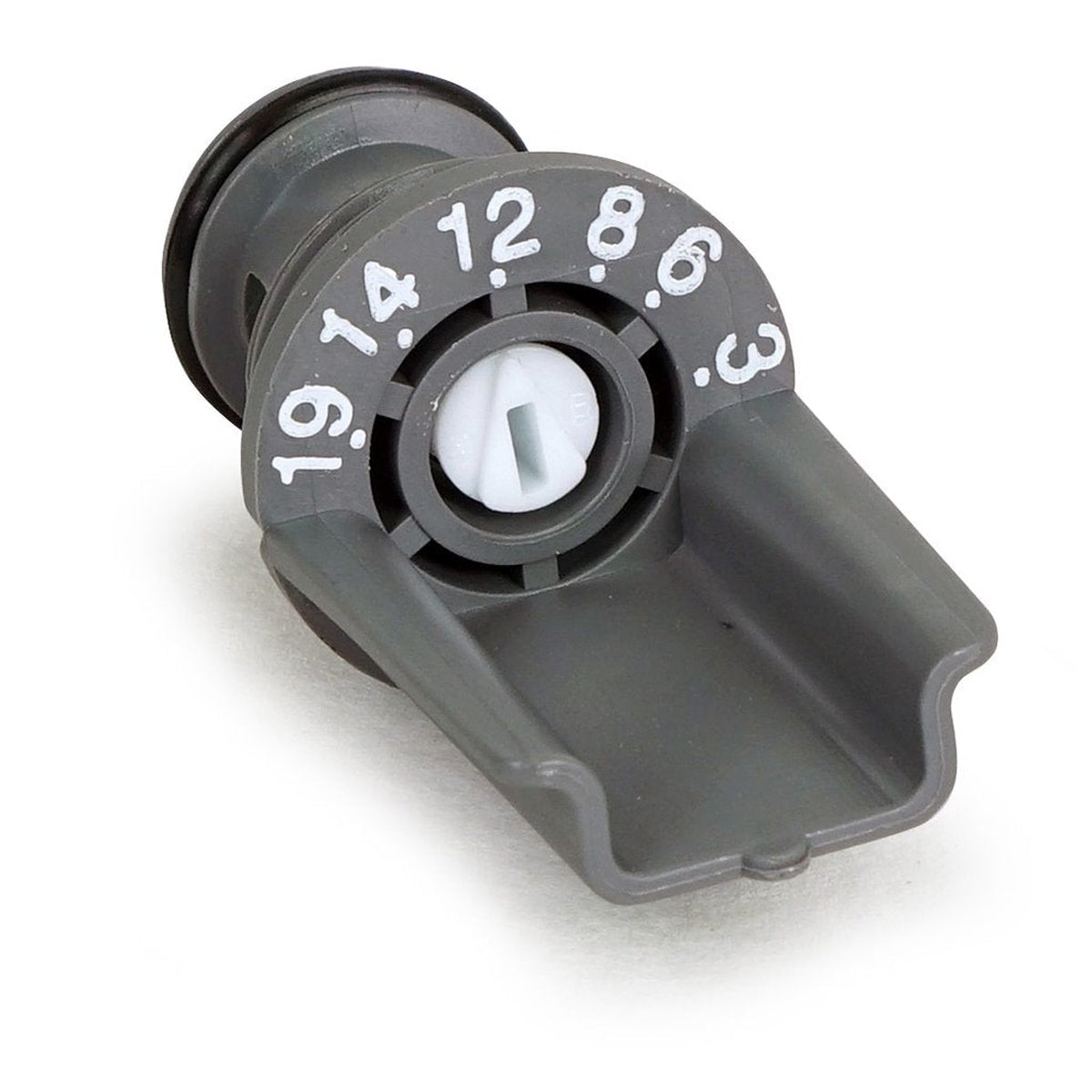

Brine Refill Control Valve (AT1034263): Manages the amount of brine solution introduced into the resin tank during regeneration, ensuring optimal salt usage and system efficiency.
Bleed Valve: Allows controlled release of water pressure or air from the system to maintain proper valve operation.

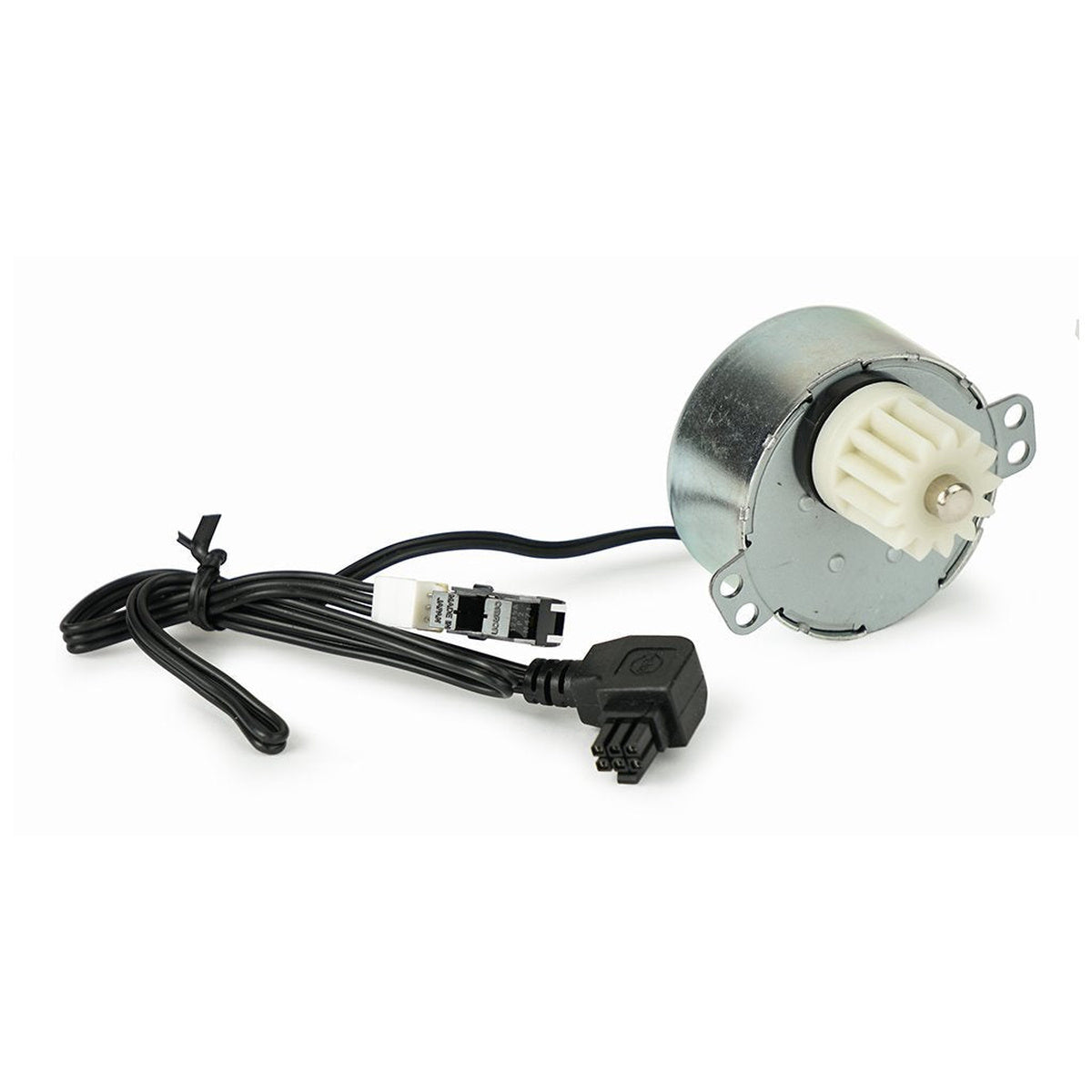

Logix Motor/Pinion Assembly with Optical Power Cable: Drives the valve camshaft precisely and communicates position feedback through optical sensors.
Cam Control Valves and Springs: Coordinate the mechanical timing and smooth actuation of valve ports during cycle transitions.

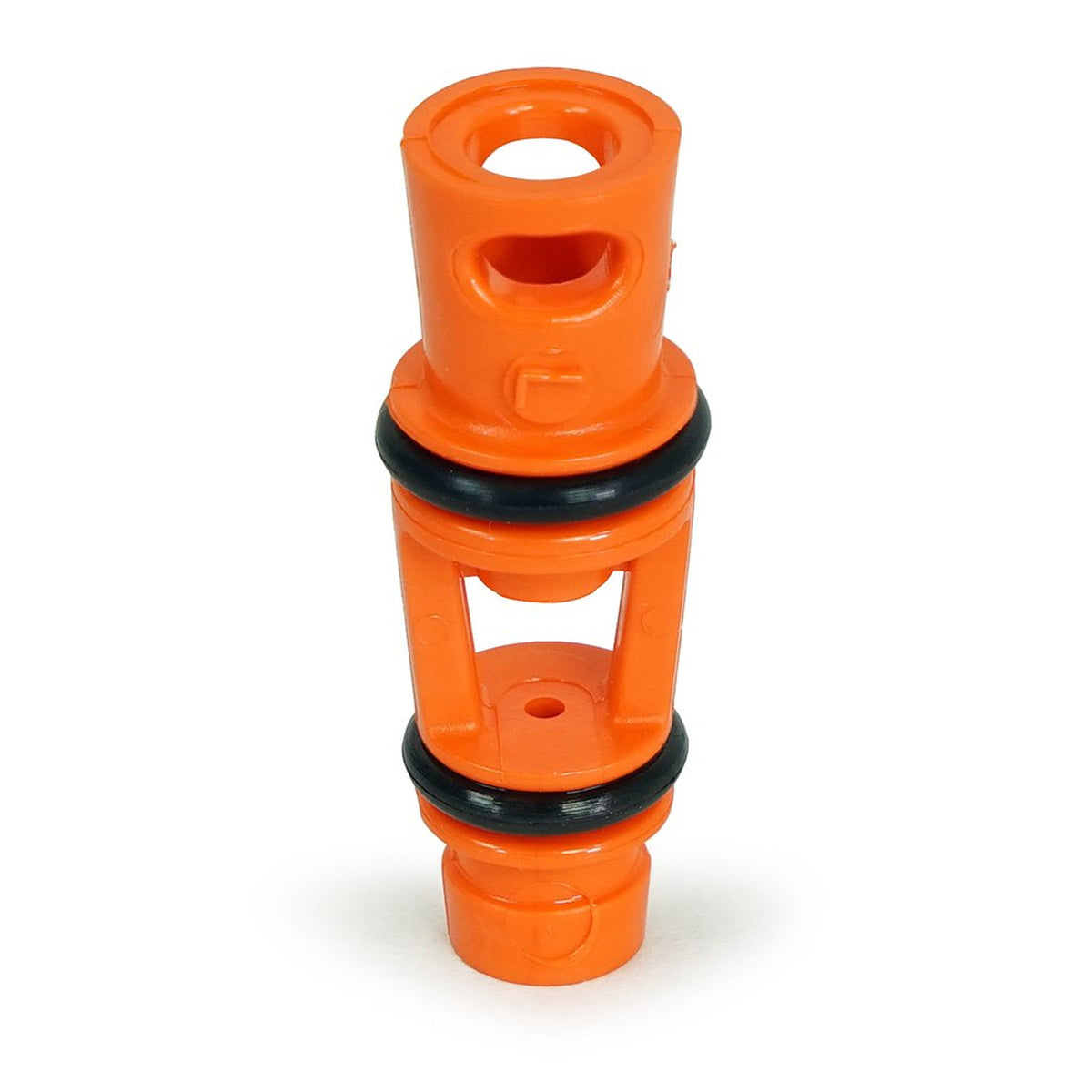

Injectors and Plugged Injectors: Control water flow rates and mixing ratios critical to regeneration and rinse processes.

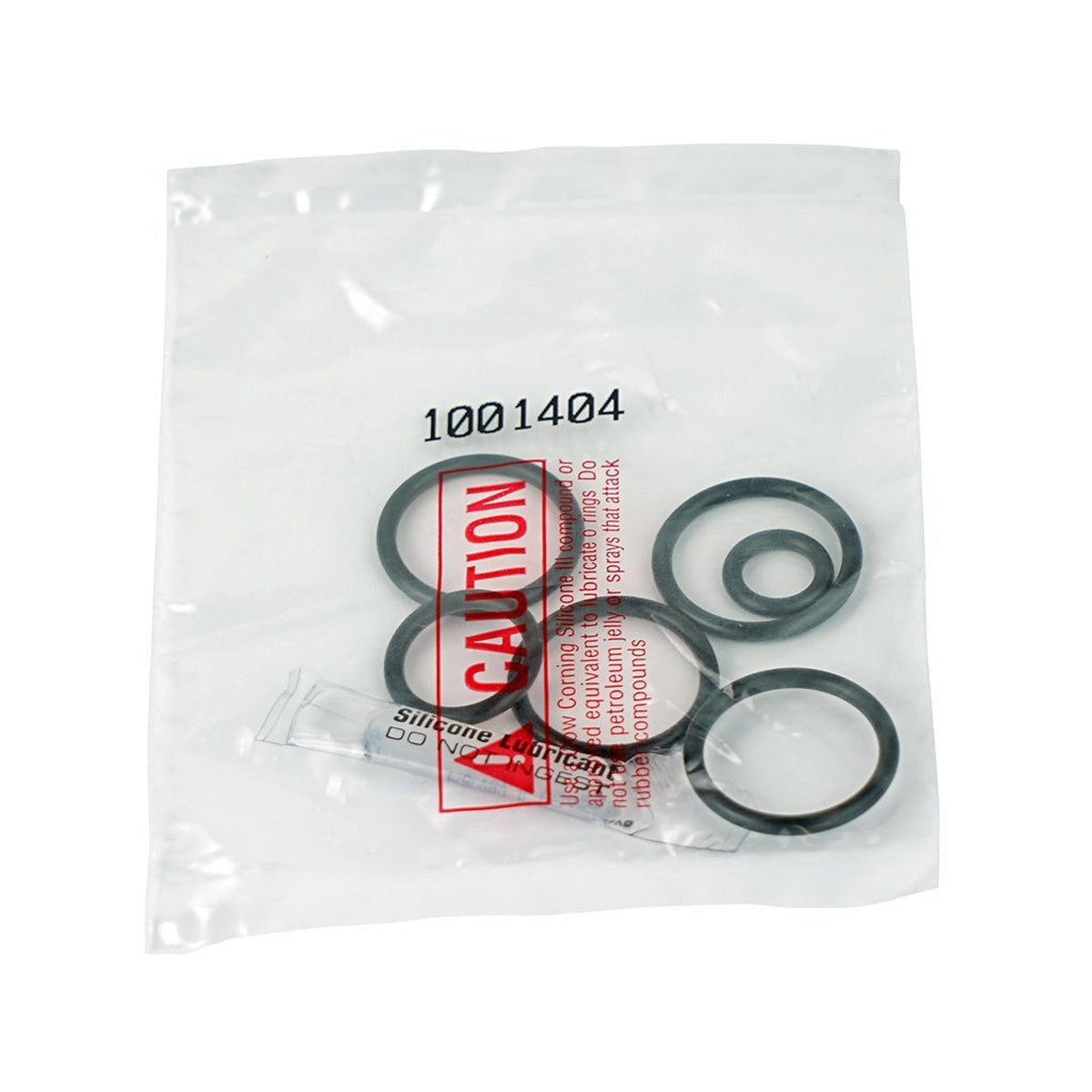

O-Rings and Seals: EPDM O-rings maintain leak-tight seals under varying pressure and chemical exposure, preserving system integrity.
By maintaining or replacing these components with genuine parts, system operators ensure accurate valve timing, reliable cycle execution, and consistent water quality output.
How to Choose the Right Autotrol Valve Parts
Selecting the correct Autotrol valve components requires understanding your existing system’s model and part numbers. Key considerations include:
Compatibility: Confirm your valve model and series (e.g., Logix 255, Logix 263/268) to select matching cams, springs, and motor assemblies. Using mismatched parts can cause operational failures or void warranties.
Functionality Required: Identify the function you need to service or upgrade—brine refill control, valve timing, injector flow rates, or sealing surfaces—to select the appropriate component.
OEM vs. Aftermarket: This collection features genuine Pentair Autotrol parts, ensuring factory specifications for dimensions, materials, and performance standards. Avoid generic substitutes that may degrade system reliability.
For example, if your system uses a 36-inch tank with a 3.3 gallons per minute (gpm) flow rate, the Magnum Injector designed for that specification ensures proper regeneration flow and prevents salt bridging. Similarly, an EPDM O-ring with 70 Duro hardness (-318 specification) maintains optimal seal resilience and durability within the valve assembly.
Sizing and Compatibility Considerations for Autotrol Valve Parts
Accurate sizing and compatibility checks are essential to avoid installation issues and performance degradation. Here are some important sizing details and compatibility tips:
Injector Size: Magnum Injectors are sized by tank diameter and flow rate, such as 24-inch tanks with 1.4 gpm or 36-inch tanks with 3.3 gpm. Selecting the correct injector ensures consistent brine draw and prevents salt channeling.
Valve Cam Assemblies: Different Logix series (255, 263, 268) use unique cam profiles and spring tensions to control cycle timing precisely. Verify the part number to match your valve model exactly.
O-Rings and Seals: Use the specified EPDM O-rings with the correct hardness rating (70 Duro) and size (-318) to maintain chemical resistance and pressure sealing capabilities.
Motor and Sensor Assemblies: The Logix Motor/Pinion Assembly with Optical Power Cable integrates mechanical and electronic controls; ensure cable length and connector types are compatible with your control board.
Consult your system’s technical documentation or Pentair’s official part catalogs to cross-reference part numbers and specifications. Proper component matching prevents premature wear and maintains system efficiency.
Maintenance Tips for Autotrol Valve Parts
Routine maintenance and timely replacement of Autotrol valve parts maximize the lifespan and operational reliability of your water treatment system. Consider these best practices:
Regular Inspection: Periodically check components such as O-rings, injectors, and valve cams for signs of wear, cracking, or mineral buildup that can impair function.
Clean Injectors and Valves: Mineral deposits or sediment can clog injectors and valve ports; clean parts carefully with manufacturer-recommended solutions to restore flow rates.
Lubricate Seals: Use only approved silicone-based lubricants on O-rings and moving parts to maintain flexibility and sealing without degrading EPDM materials.
Replace Worn Parts Promptly: Components like valve springs and motor assemblies experience mechanical fatigue; replace them at recommended intervals or when performance issues arise.
Verify Electrical Connections: For parts with optical sensors and cables, ensure connectors are secure and free of corrosion or damage to maintain accurate valve positioning feedback.
Following these maintenance guidelines helps prevent unexpected downtime, reduces repair costs, and maintains optimal water treatment performance.
Frequently Asked Questions About Autotrol Valve Parts
Q? How do I identify the correct Autotrol valve part number for my system?
Check the valve body or your system's manual for the model number and part codes. Cross-reference these with the Pentair catalog or the product listing to ensure compatibility.
Q? Can I use aftermarket parts instead of genuine Pentair Autotrol components?
While aftermarket parts may be cheaper, genuine Pentair Autotrol parts guarantee exact fit, material quality, and performance. Using OEM parts reduces risk of malfunction and maintains warranty coverage.
Q? How often should I replace components like O-rings and injectors?
Replace O-rings during routine maintenance or if leaks are detected. Injectors should be inspected annually for clogging or wear and replaced as necessary to maintain proper flow and regeneration efficiency.
