C-Series Ultimate Complete Well System
Every well problem solved in one matched build — every stage a genuine C-Series head-valve system, matched on one platform.

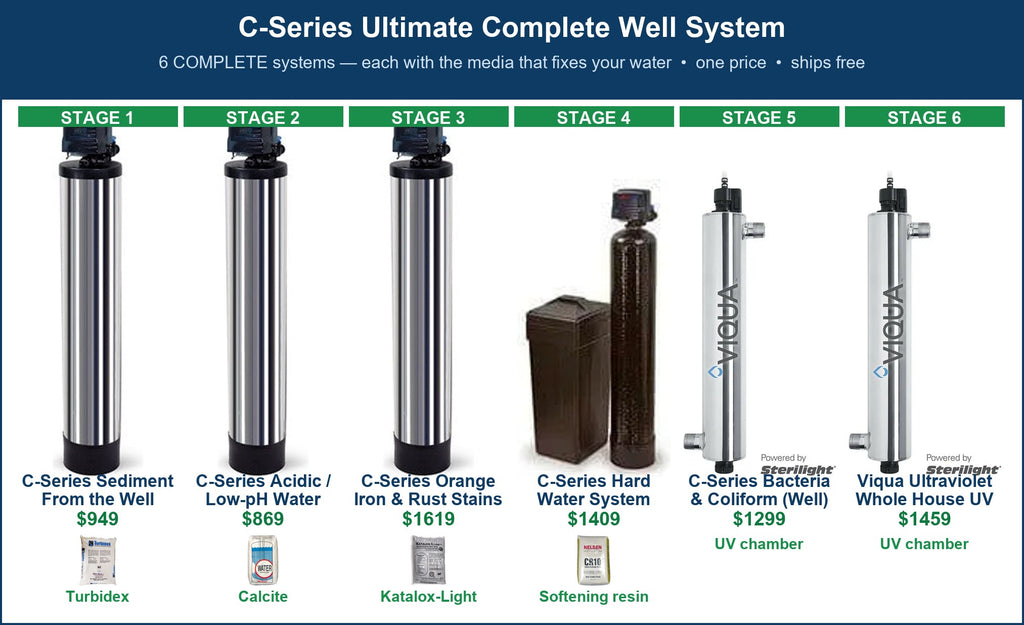

Everything in this package
Staged in the correct treatment order for well water. Each item is a complete system you can also buy alone — here matched and staged as one C-Series build.
C-Series Sediment From the Well Pump System
Stage 1 — Sediment. Stops well-pump sand, grit and turbidity before it wears the train.
$949
C-Series Acidic / Low-pH Water System
Stage — Acid Neutralizer. Raises low pH FIRST to stop corrosion and blue-green stains (must precede softening).
$869
C-Series Orange Iron & Rust Stains System
Stage — Iron & Sulfur. Air-injection C-Series filter removing iron, manganese and rotten-egg sulfur.
$1619
C-Series Hard Water System
Stage — Softener. C-Series metered softener removing the hardness that scales pipes and appliances.
$1409
C-Series Bacteria & Coliform (Well) System
Stage — Disinfection. C-Series contact/filtration stage that suppresses bacteria and odor.
$1299
Viqua Ultraviolet Whole House UV System
Add-on — UV Disinfection. Kills bacteria, viruses and cysts — chemical-free, one lamp a year.
$1459
Under-Sink 5-Stage Reverse Osmosis
Add-on — Drinking RO. Bottled-quality drinking & cooking water at a dedicated faucet.
$259
Correct install order matters. Neutralizer → Iron/Sulfur → Softener → Disinfection/UV → Drinking RO. Low pH is corrected first and iron is removed before softening, so nothing fouls the resin.
Why one brand? Every control head here is C-Series — one programming story, shared parts, one service call for the life of the system.
Sized free to your well
Send your well test (iron, hardness, pH, bacteria, arsenic, nitrate) and we size every stage to your flow at no charge. Ships free in the US with full manuals.
Every included system — the media inside & why it earns its place
C-Series Sediment From the Well Pump System
Turbidex graded sediment media
- Filters sand, silt and turbidity down to ~5 micron
- Higher dirt-holding capacity and lower pressure drop than sand
- Backwashes clean — no cartridges to buy
- Protects valves, fixtures and appliances from grit
C-Series Acidic / Low-pH Water System
Calcite pH-neutralizing media
- Dissolves slowly to raise low, acidic pH toward neutral
- Stops blue-green copper staining and pinhole pipe leaks
- Self-limiting — it won't overshoot pH
- Simple periodic top-up as it is consumed
C-Series Orange Iron & Rust Stains System
Katalox-Light oxidizing media
- MnO₂-coated catalyst oxidizes and traps iron, manganese AND rotten-egg sulfur
- Handles heavy iron loads at fast service flow
- No chemicals to add — air-injection recharges it each cycle
- High-performance, long-lasting filtration media
C-Series Hard Water System
Premium softening resin (10% cross-linked cation)
- Grabs and holds the calcium & magnesium that scale pipes, heaters and fixtures
- Softer skin & hair, brighter laundry, spot-free glasses and dishes
- High exchange capacity — fewer regenerations and less salt
- Long service life on a fully serviceable valve platform
C-Series Bacteria & Coliform (Well) System
Viqua UV disinfection chamber
- Germicidal UV inactivates bacteria, viruses and cysts — chemical-free
- Essential final barrier for well & coliform-positive water
- No taste, odor or by-products added
- Simple annual lamp change
Viqua Ultraviolet Whole House UV System
Viqua UV disinfection chamber
- Germicidal UV inactivates bacteria, viruses and cysts — chemical-free
- Essential final barrier for well & coliform-positive water
- No taste, odor or by-products added
- Simple annual lamp change
Overview
- 🇺🇸 U.S.-based support and expert assistance
- 🔧 Built with trusted, industry-standard components
- 🚚 Ships nationwide - freight-safe packaging
- 🏠 Ideal for residential and light-commercial systems
Specs (Typical)
| Max Operating Pressure | 125 psi |
|---|---|
| Max Water Temp | 100 °F |
| Electrical | 120 V AC |
| Flow Range | 5-45 GPM (model dependent) |
