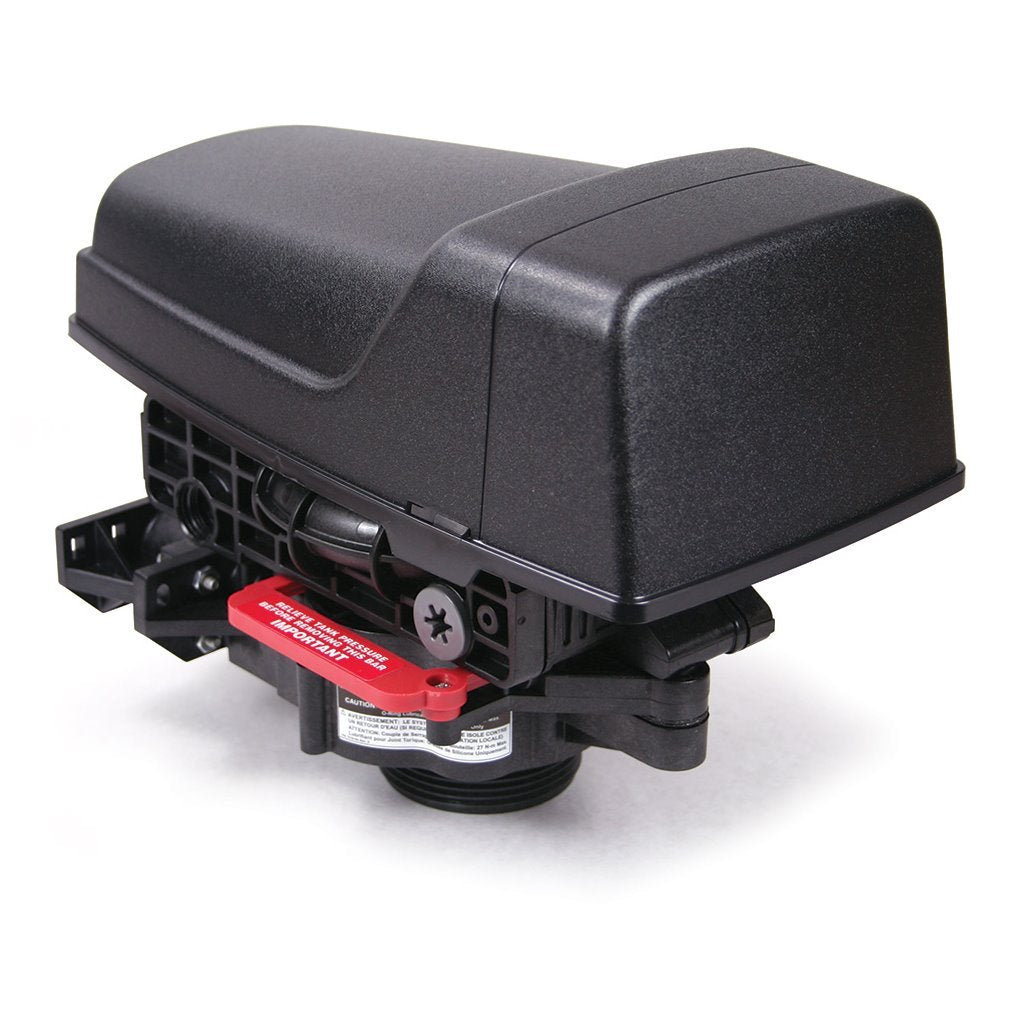

Understanding the Pentair Autotrol 255/460 Control Head
The Pentair Autotrol 255/460 control head is an essential component in residential water softening systems. It manages the flow of water through the softener, orchestrates regeneration cycles, and ensures the delivery of softened water to your home. Proper functioning of this control head is crucial for maintaining optimal water quality. However, like all mechanical devices, it can develop faults over time. Recognizing common issues and understanding how to diagnose and fix them can extend the lifespan of your water softener and improve its performance.
Common Faults in the Autotrol 255/460 Control Head
- Control Valve Not Initiating Regeneration: One of the most frequent issues is the control head failing to start the regeneration cycle when needed. This can be caused by a malfunction in the timer, faulty seals, or electrical problems.
- Water Flow Issues: Reduced or inconsistent flow during water softening can indicate a clogged or damaged control valve or flow control components.
- Leaks: Leaks around the valve body or at connection points may result from worn seals, gaskets, or loose fittings.
- Erratic or No Display on Control Panel: If the control head features a display, and it malfunctions, it could be due to wiring issues, or an internal fault.
- Failure to Refill or Resin Regeneration: When the softener doesn’t regenerate properly, resin capacity decreases, resulting in hard water getting through.
Diagnosing Faults Effectively
Visual Inspection
Start by inspecting the control head for obvious signs of damage or leaks. Check for cracked or worn seals, loose fittings, and corrosion. A visual inspection can quickly identify problems like broken components or leaks that need immediate attention.
Check the Power Supply
Ensure the control head is receiving power. Reset the system if applicable, and verify that the timer dial or digital display is functioning properly. Faulty wiring or tripped circuit breakers can prevent the control head from operating normally.
Test the Flow
Assess water flow through the system. Reduced flow may indicate blockages or a clogged valve. Removing and cleaning the control head or associated parts may resolve these issues.
Review Regeneration Settings
Incorrect settings or a malfunctioning timer can prevent regeneration cycles. Confirm that the settings align with your water usage and hardness levels. Consult your manual for proper configuration procedures.
Fixing Common Issues
Replacing Faulty Seals or Gaskets
Worn or damaged seals are a common source of leaks. Replacing these components is often straightforward and can restore water tightness, preventing leaks and further damage.
Cleaning or Replacing Internal Components
Mineral buildup and debris can hinder the movement of internal parts. Regular cleaning of the control head and replacing worn components can resolve flow and regeneration issues.
Electrical Troubleshooting
If the control panel isn’t functioning properly, inspect the wiring connections. Replacing damaged wires or repairing contacts can restore proper operation.
Resetting or Reprogramming
If the system isn’t regenerating as scheduled, reprogram the timer or control settings according to your system’s manual. If issues persist, the control head may need servicing or replacement.
When to Seek Professional Help
If your troubleshooting efforts do not resolve the faults, or if you’re uncomfortable performing repairs, it’s advisable to contact a water treatment specialist. Proper diagnosis and repair are essential to maintaining system performance and water quality.
Maintaining Your Autotrol 255/460 Control Head for Longevity
- Periodic inspections for leaks and wear.
- Regular cleaning of internal components.
- Ensuring electrical connections are secure.
- Maintaining correct system settings based on usage and water quality.
By understanding typical faults and their solutions, you can keep your Pentair Autotrol 255/460 control head operating reliably for years to come. Proper maintenance and timely repairs will ensure optimal performance and consistent delivery of soft, clean water to your home.
Pre-treatment and Filtration Order
The sequence of treatment stages in your water system is crucial for overall performance, particularly for the Pentair Autotrol 255/460 control head. If pre-treatment steps, such as sediment filtration or carbon filtration, are not correctly ordered, they can cause undue stress on the softening system. For instance, sediment must be removed before water reaches the softener to prevent clogs and damage to internal components. If particulates like sand or silt enter the control head, they can disrupt the regeneration cycle and lead to operational faults.
A proper filtration order ensures that the water entering the softener is as clean as possible. This minimizes the risk of flow issues and leaks that may arise from accumulated debris, thereby enhancing the longevity and efficiency of your water treatment system.
