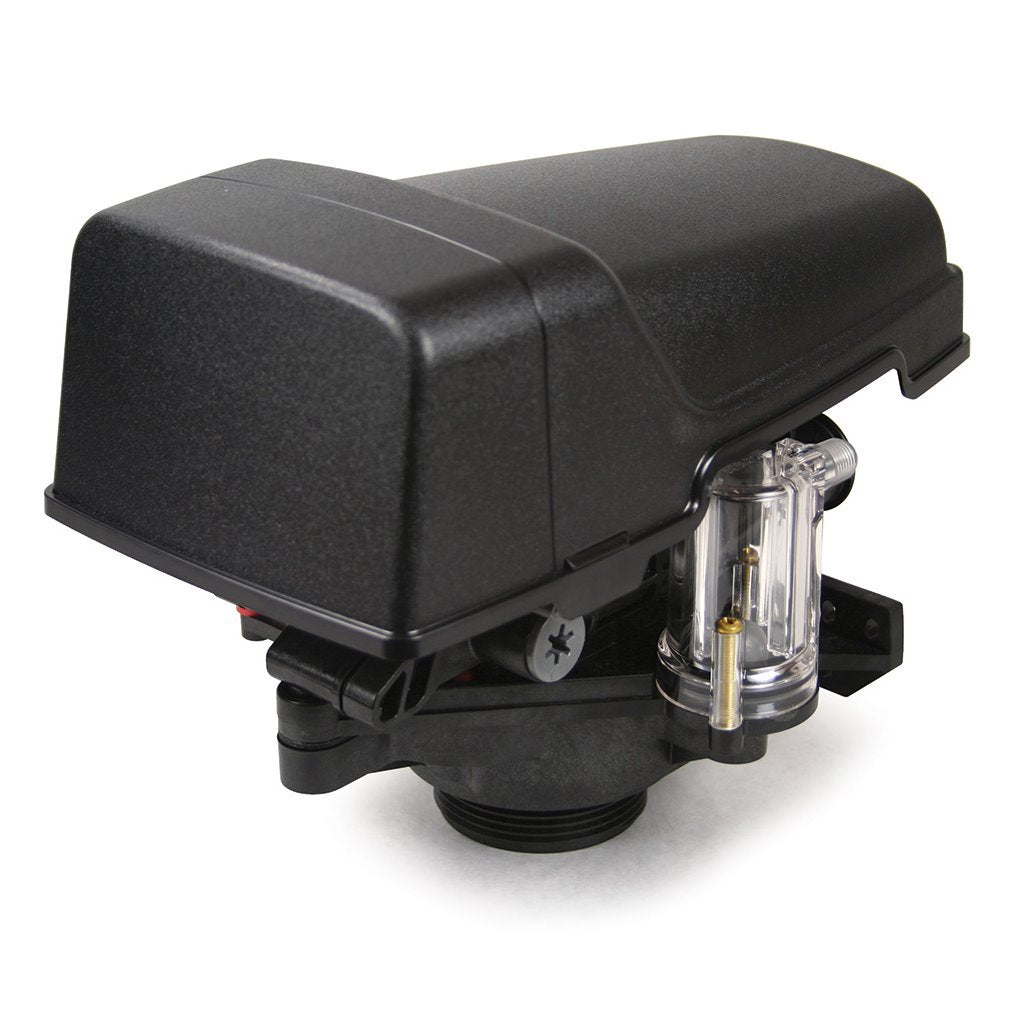

Introduction to the Pentair Autotrol 255/460 Head
The Pentair Autotrol 255/460 Control Head is a vital component in residential water softening systems, responsible for managing water flow and regeneration cycles. Proper installation and setup are crucial to ensure the system operates efficiently and effectively. This guide provides a detailed walkthrough of how to install and configure the Autotrol 255/460 Head for optimal performance in your home.
Preparation Before Installation
Before beginning installation, gather all necessary tools and manuals. Confirm that you have the correct control head model compatible with your water softener system. Reviewing the included service manual can provide specific instructions and safety precautions. Ensure the area around your water treatment setup is accessible and free of obstructions.
Installing the Autotrol 255/460 Control Head
Step 1: Turn Off Water Supply
Locate the main water supply to your water softening system and shut it off. This prevents water from flowing during installation, avoiding potential leaks or water damage.
Step 2: Drain the System
Open the nearest faucet to drain remaining water from the system and relieve pressure. This ensures a safe and clean installation process.
Step 3: Remove the Existing Control Head
If replacing an existing control head, disconnect it from the resin tank and the bypass valve, if present. Carefully unscrew the control head from the valve body, following any specific instructions provided in your manual.
Step 4: Prepare the New Control Head
Inspect the Pentair Autotrol 255/460 Head for any shipping damages or defects. Ensure all included components are present. Apply a compatible sealant or thread tape if recommended, to prevent leaks. Align the control head with the valve body and thread it securely in place.
Step 5: Connect the Water Supply Lines
Reattach the inlet and outlet lines, ensuring they are properly seated and tightened to prevent leaks. Verify the connections follow the manufacturer's specifications for your system.
Configuring the Autotrol 255/460 Control Head
Step 1: Initial Settings
Set the clock and timer according to your water usage schedule. The control head may feature a dial or digital interface for these adjustments. Refer to your manual for precise instructions.
Step 2: Program Regeneration Schedule
Adjust the regeneration cycle timing to match your household water consumption and water hardness levels. The control head typically allows for daily or weekly regeneration settings, helping maintain resin efficiency.
Step 3: Fine-Tuning Settings
Some models may offer additional adjustments, such as backwash flow rates or resin bed regeneration parameters. Consult your manual for recommendations suited to your specific water softener tank and local water conditions.
Final Steps and Testing
After configuring the controls, turn on the main water supply. Observe the system as it initiates the starting cycle. Check for leaks around the control head and connections. Confirm that the system is drawing water correctly and that regeneration cycles operate according to your programmed schedule.
Perform a backwash and regeneration cycle manually if needed, following the manual procedures. Monitoring the system over the next few days will ensure it functions correctly and provides softened water consistently.
Ongoing Maintenance and Adjustments
Regularly inspect the control head and system components for signs of wear or leaks. Adjust the regeneration schedule as needed based on changes in water usage or water hardness. Keep the manual handy for troubleshooting and detailed configuration options.
Conclusion
Proper installation and setup of the Pentair Autotrol 255/460 Head ensure your water softener operates reliably, providing softened water for your home. Following this installation walkthrough helps you avoid common pitfalls and lays the foundation for optimal system performance. For additional assistance, consult your product's manual or contact a water treatment professional.
Pre-treatment and filtration order
In residential water treatment systems, the sequence of treatment stages plays a crucial role in ensuring optimal performance and water quality. When installing the Pentair Autotrol 255 Valve, it is essential to consider the order of pre-treatment and filtration components. For instance, sediment filters should be placed before the softener to remove larger particles that could damage the softener's resin. This step enhances the efficiency of the water softening process and prolongs the life of the equipment.
Additionally, if your system includes carbon filters or reverse osmosis units, these should typically come after the softening stage. This arrangement ensures that impurities are effectively removed, leaving you with softened and clean water for your household needs. Proper sequencing helps maintain the overall effectiveness of your water treatment system by preventing contamination and ensuring each stage functions as intended.
