Descripción

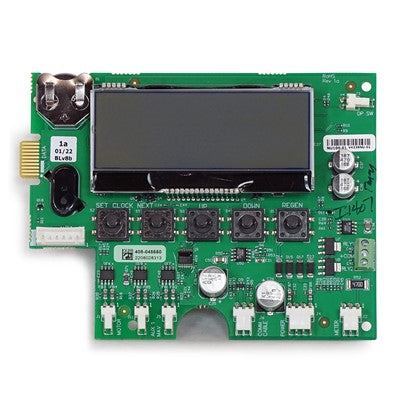

Nelsen Mid-Plate Valve Dot-Matrix Board is the replacement display and control board that drives the dot-matrix screen on mid-plate Nelsen control valves.
- Dot-matrix display board for programming and status readout
- Built for the mid-plate valve controller layout
- Handles cycle programming, time-of-day, and regeneration settings
- Restores a valve with a dead, dim, or scrambled display
- Shipping weight approximately 2.3 kg with packaging
- Genuine Nelsen replacement electronic board
Install this board when a mid-plate valve's screen has failed, the buttons no longer respond, or the controller will not hold its program. Because it carries the valve's settings interface, replacing it typically returns full control over regeneration timing and cycle steps. Confirm the board matches your specific mid-plate valve model and connector layout before swapping it in, and note your existing program settings first so you can re-enter them.
Overview
- 🇺🇸 U.S.-based support and expert assistance
- 🔧 Built with trusted, industry-standard components
- 🚚 Ships nationwide - freight-safe packaging
- 🏠 Ideal for residential and light-commercial systems
Specs (Typical)
| Max Operating Pressure | 125 psi |
|---|---|
| Max Water Temp | 100 °F |
| Electrical | 120 V AC |
| Flow Range | 5-45 GPM (model dependent) |
