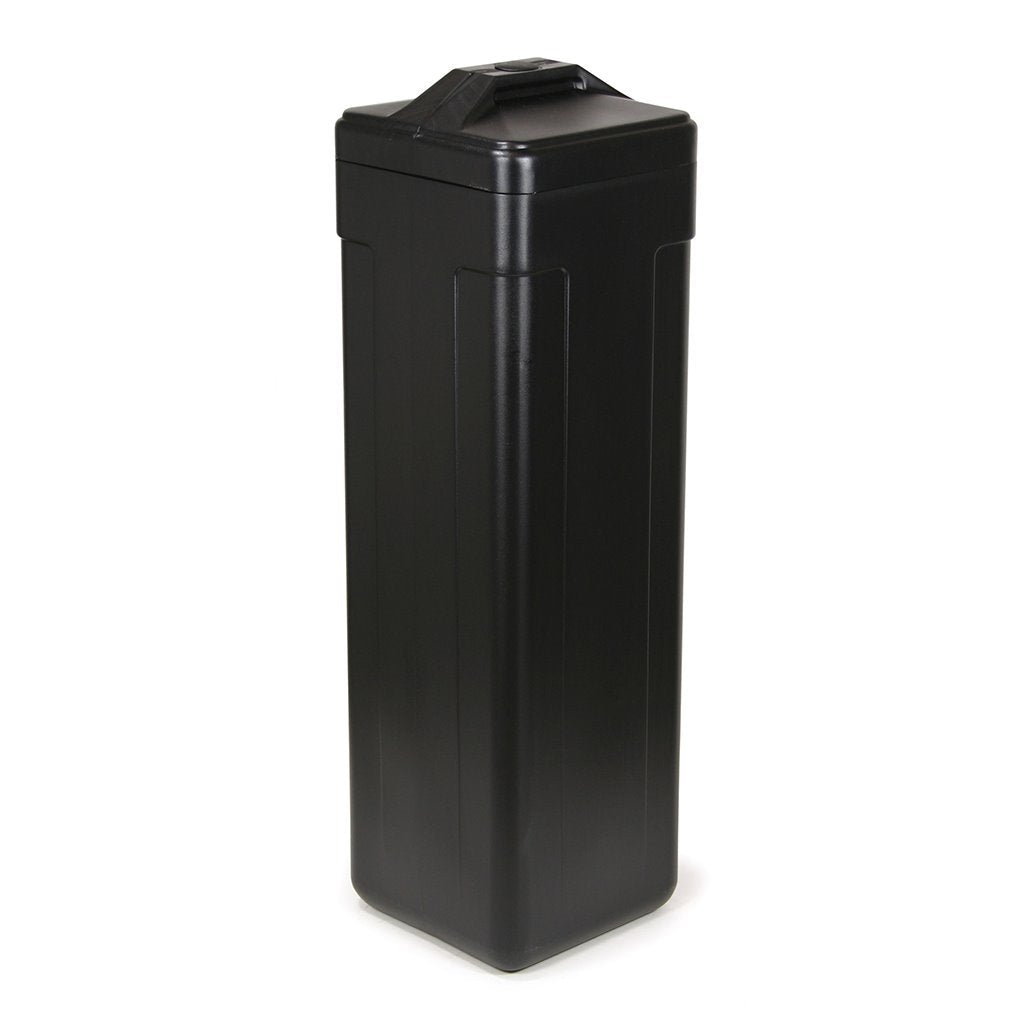

Brine Tank Asm. 11x38 Charcoal w/2310 S

This Charcoal-finish 11x38 Brine Tank Assembly is configured with the widely used Fleck 2310 brine safety valve and a 500 air check, delivering protected, dependable brining in one complete package. The foundation is a durable Nelsen polyethylene tank sized for standard residential softeners.

The float-controlled 2310 safety valve closes off the brine fill at a set level to guard against overflows, while the included 500 air check prevents air from being drawn into the resin tank as the refill completes. Together they cover the two essentials of trouble-free regeneration, keeping the cycle consistent and the surrounding area dry, with no manual intervention required.

How the components work together

During regeneration, the softener pulls concentrated brine from this tank to recharge the resin that removes hardness minerals from your water. The 4" brine well houses the safety valve and float, the overflow elbow offers a safe drain path if levels ever rise too high, and the tubing carries brine between the tank and the control valve. A complete, properly matched assembly keeps that process running smoothly.

• Square 11 x 11 x 38" polyethylene tank in Charcoal
• Fleck 2310 brine safety valve for overfill protection
• 500 air check for air-free refill
• 4" brine well with cap plus overflow elbow and tubing
• Cover included
• About 8.1 lbs

Shipping as a coordinated assembly, this kit removes the guesswork of matching individual brine parts, ideal for installers handling new systems or tank swaps. The contemporary charcoal color suits modern utility rooms and visible installs, the salt-resistant poly tank promises years of service, and the compact square footprint fits neatly beside the resin tank. A complete, ready-to-go brine assembly from Water Softener Plus that goes to work the moment it is plumbed in.

Upkeep is simple: keep the tank topped with good softener salt, break up the occasional salt bridge, and check the 2310 valve and air check during routine service. The combination of overfill protection and air management makes this Charcoal assembly a dependable, low-maintenance choice that keeps a residential softener performing cleanly cycle after cycle. Whether you are upgrading an older softener or building a new one, it arrives ready to plumb in with everything matched and accounted for.
