Complete Guide to Cartridge Filter Systems for Water Treatment

Cartridge filter systems are essential components in effective water treatment, providing reliable filtration that removes particulates, sediments, and certain contaminants to improve water clarity and quality. Our Cartridge Filter Systems collection features a selection of high-quality units and adapters designed to meet a wide range of residential, commercial, and light industrial water filtration needs. This guide explores the functionality, selection criteria, sizing, and maintenance of cartridge filter systems, with a focus on the specific products available in this collection, such as the Mediaguard Performa adapters and Nelsen filter units.

How Cartridge Filter Systems Work

Cartridge filter systems operate by forcing water through a replaceable filter cartridge that captures suspended solids and impurities. These filters typically consist of pleated, spun, or wound materials that provide a large surface area for filtration. Water enters the filter housing, passes through the cartridge, and exits with reduced particulates and improved clarity.

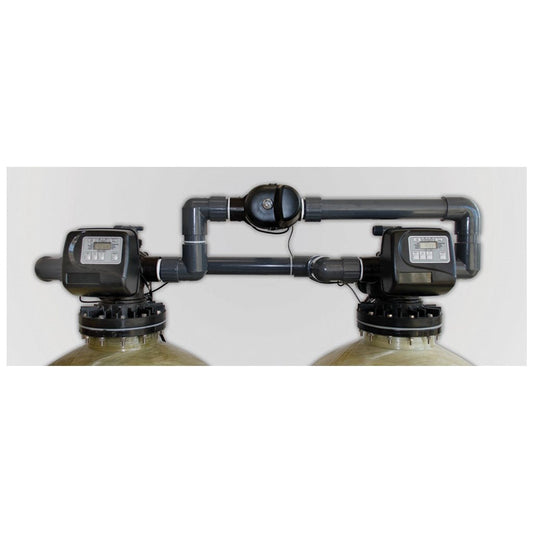

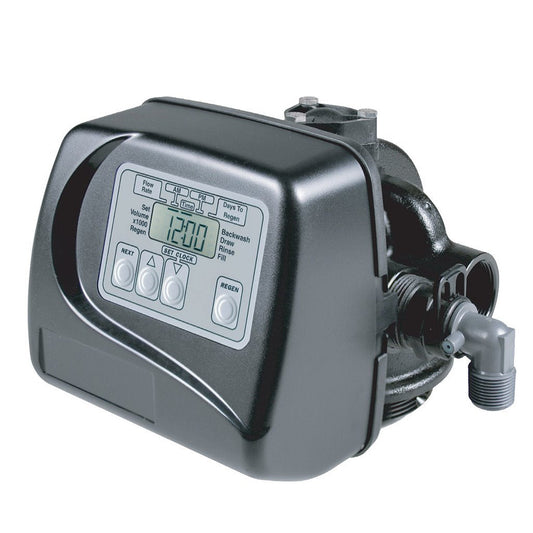

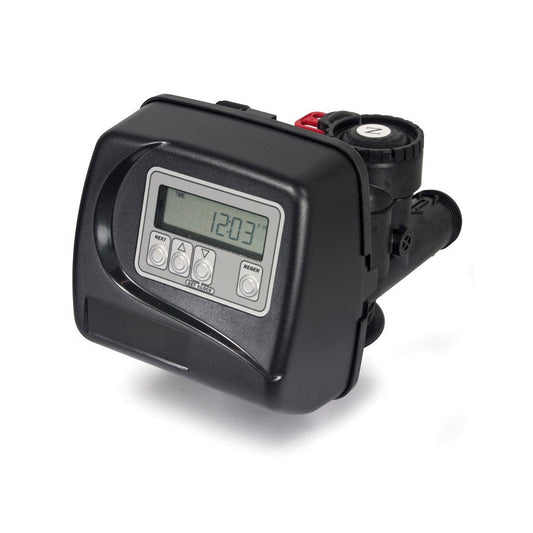

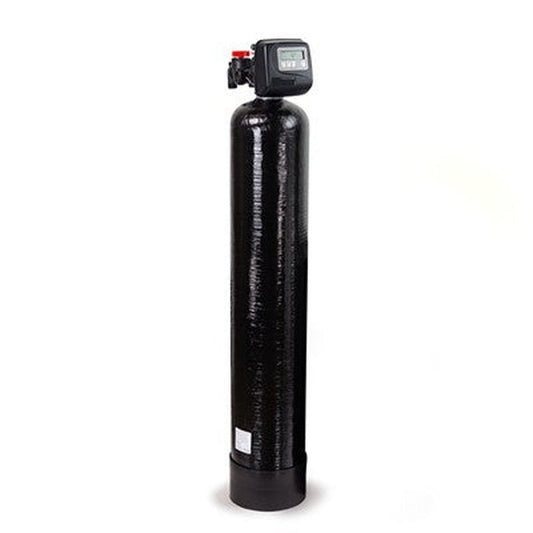

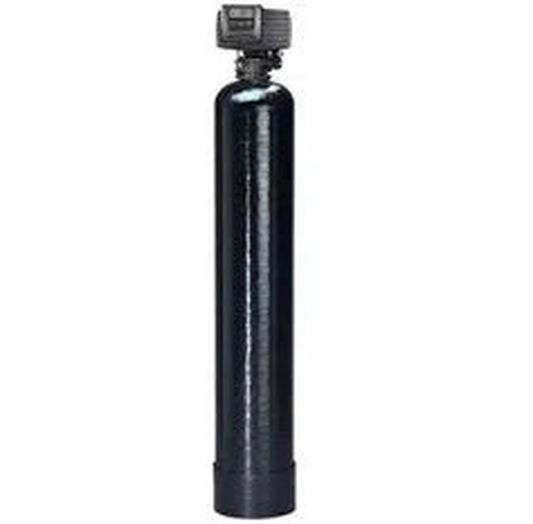

In this collection, the Nelsen filter units come in various sizes, such as 36" x 72", 30" x 72", 24" x 72", 21" x 62", 18" x 65", 16" x 65", and 14" x 65". These dimensions refer to the diameter and length of the filter vessels, accommodating different cartridge sizes and flow requirements. The Nelsen Auto Iron Filter with media integrates filtration and media treatment to reduce iron content alongside particulate filtration.

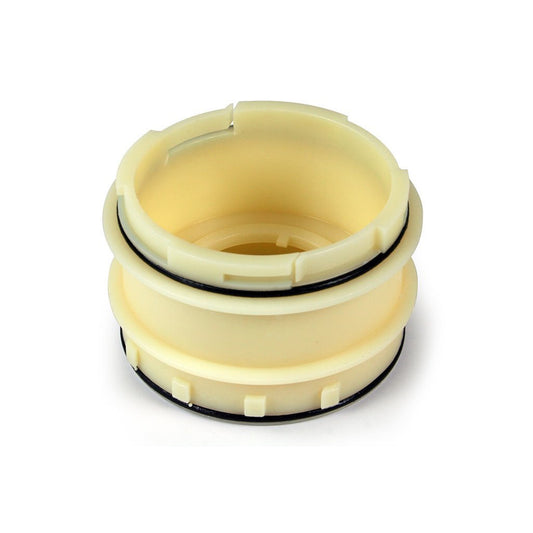

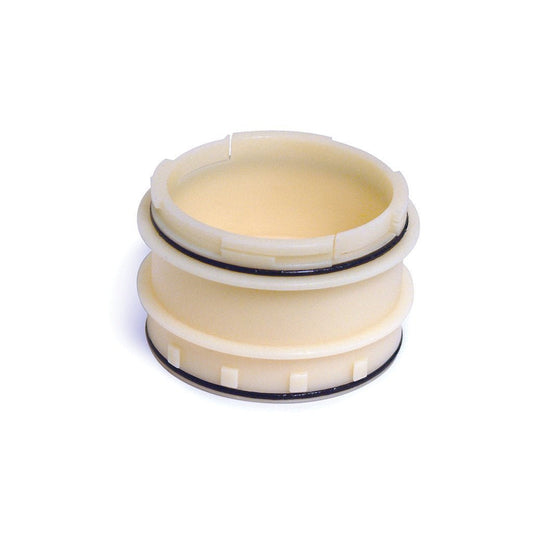

The Mediaguard Performa adapter for 10-160A systems (CANPRO-10-160A) is designed to enhance the compatibility and performance of cartridge filter systems within specified flow ranges. It allows for seamless integration with Mediaguard Performa series components, ensuring optimal filtration efficiency.

How to Choose the Right Cartridge Filter System

Selecting the appropriate cartridge filter system depends on several key considerations:

• Water Quality and Contaminants: Assess the level and type of particulates or contaminants in your water. For example, the Nelsen Auto Iron Filter is specialized for iron reduction, while standard Nelsen filter units are suited for sediment and particulate filtration.
• Flow Rate Requirements: Determine your system’s flow rate to select a filter unit that can handle your water demand without excessive pressure loss. The Mediaguard Performa adapter supports 10-160 GPM systems, making it suitable for moderate to high flow applications.
• Filter Cartridge Size and Type: Match the filter cartridge size to the filter housing dimensions. Larger diameter and length units (such as 36" x 72") accommodate bigger cartridges that offer longer service life and higher dirt-holding capacity.
• System Compatibility: Ensure the filter system integrates with existing plumbing and water treatment components. The Mediaguard Performa adapter is specifically designed to fit 10-160A systems, providing a straightforward upgrade path.
• Application Environment: Consider whether the system is for residential, commercial, or industrial use. Larger Nelsen filter units with higher capacity are better suited for commercial or light industrial settings.

Sizing and Compatibility of Nelsen Filter Units and Mediaguard Adapters

The Nelsen filter units vary primarily by size, measured in inches by diameter and height (e.g., 24" x 72"). This sizing directly affects the volume of water filtered and the cartridge length it supports. A larger unit accommodates longer cartridges, which generally provide better filtration efficiency and longer intervals between cartridge replacement.

For example:

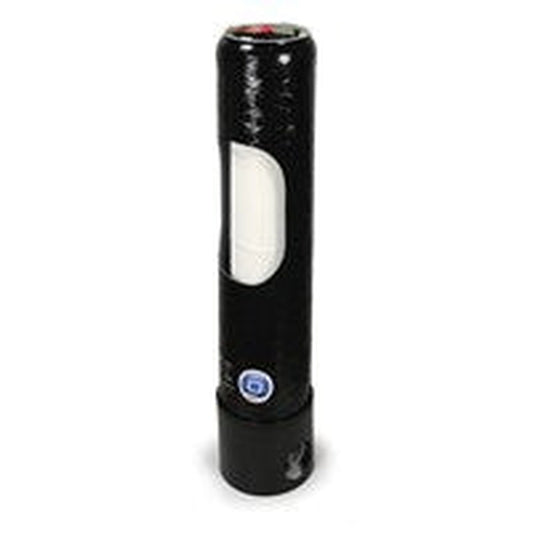

• Nelsen 36" x 72" Filter Unit: Suitable for high flow rates, large households, or commercial applications requiring extended filtration capacity.
• Nelsen 18" x 65" Filter Unit: Ideal for medium-sized systems with moderate flow and space constraints.
• Nelsen 14" x 65" Filter Unit: Appropriate for smaller residential systems or low flow applications.

The Mediaguard Performa adapter (CANPRO-10-160A) is engineered to fit within the 10-160A system range, ensuring compatibility with a variety of cartridge sizes and filter housings. This adapter improves operational efficiency by optimizing water flow and pressure within the cartridge filter system.

Maintenance of Cartridge Filter Systems

Proper maintenance ensures the longevity and effectiveness of cartridge filter systems. Key maintenance steps include:

• Regular Cartridge Replacement: Cartridge lifespan varies based on water quality and usage but generally ranges from 3 to 6 months. Replace cartridges when pressure drop across the filter increases or water flow decreases noticeably.
• System Inspection: Periodically check filter housings, seals, and O-rings for leaks or wear. Tighten or replace components as necessary to maintain a watertight seal.
• Cleaning: Some filter units can be backwashed or flushed depending on design. The Nelsen Auto Iron Filter with media may require media replacement or regeneration according to manufacturer recommendations.
• Pressure Monitoring: Monitor system pressure before and after the filter to detect clogging or performance issues early.
• Use Compatible Replacement Parts: Always use cartridges, adapters, and parts compatible with your specific filter unit model to ensure optimal performance and avoid damage.

Frequently Asked Questions

Q? What types of contaminants do cartridge filter systems remove?
Cartridge filters primarily remove suspended solids, sediments, rust, and particulate matter. Specialized units like the Nelsen Auto Iron Filter also reduce dissolved iron when combined with appropriate media.

Q? How do I know when to replace my filter cartridge?
Signs include a noticeable drop in water flow, increased pressure differential across the filter, or visible dirt accumulation on the cartridge. Regular intervals based on water quality and usage should also be followed.

Q? Can I use the Mediaguard Performa adapter with any cartridge filter?
No, the Mediaguard Performa adapter (CANPRO-10-160A) is designed specifically for 10-160A systems in the Mediaguard Performa series. Compatibility with other brands or sizes is not guaranteed and should be verified before purchase.
