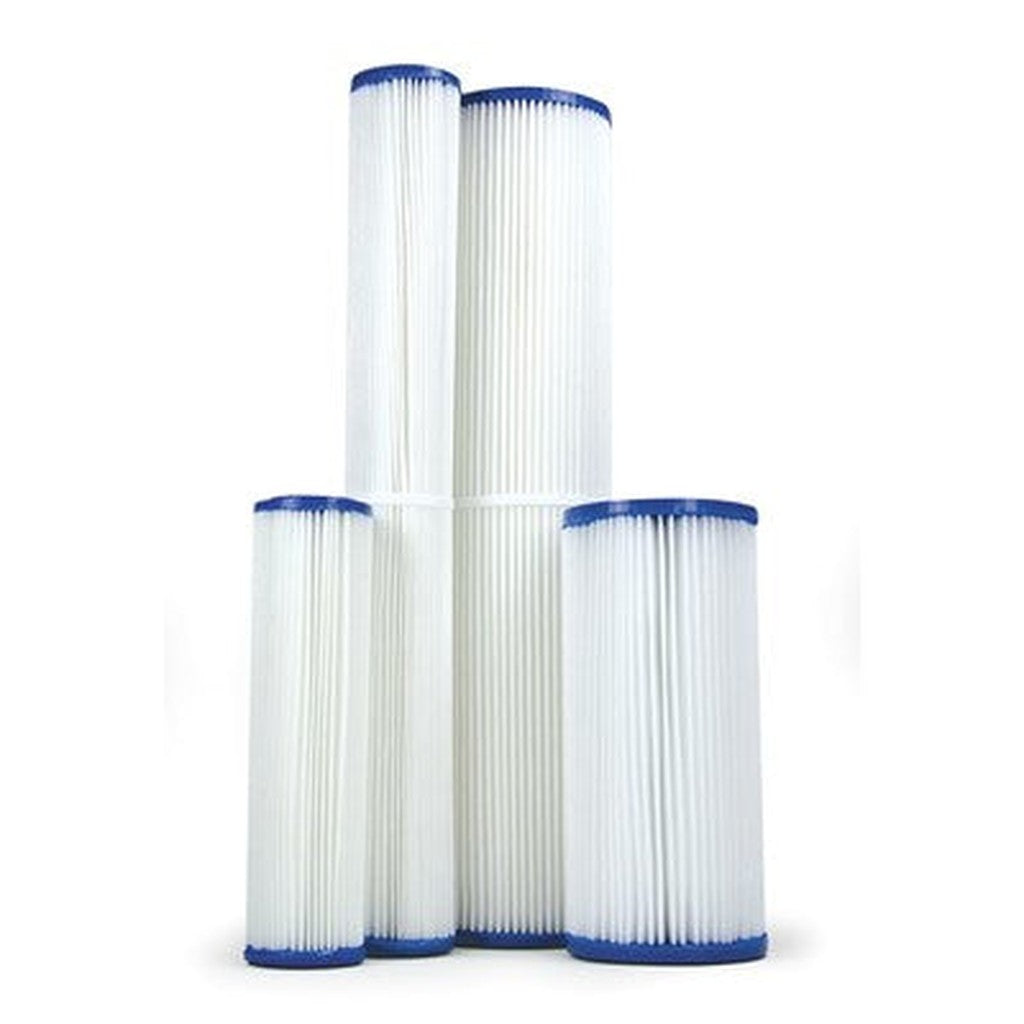

Understanding the Nelsen 20-inch 5-Micron Pleated Dirt Filter Cartridge
The Nelsen 20-inch 5-micron pleated dirt filter cartridge, designated as the NPF-5-20, is designed to provide superior sediment filtration for water treatment systems. Its purpose is to trap dirt, debris, and suspended particles as small as 5 microns, shielding your water softener, reverse osmosis units, and other components from potential damage caused by sediment buildup. The pleated design increases surface area, allowing for longer service intervals and consistent water flow, all while maintaining high filtration efficiency.
How This Approach Compares to Alternatives
Standard String-Wound Filters
Traditional string-wound filters are a common alternative for sediment filtration. They are typically made of polypropylene or similar materials wound around a core, capturing particles by the physical barrier. These filters are effective for larger sediments—generally 10 microns or larger—and are usually cheaper upfront. However, they often have a smaller surface area, which can lead to quicker clogging and more frequent replacements. Their lower efficiency at capturing smaller particles like dust and fine sediments makes them less suitable in environments where clarity and system protection against fine debris are critical.
Cartridge Filters with Non-Pleated Media
Non-pleated cartridge filters, often made from depth or melt-blown media, tend to have less surface area than pleated designs. They are typically effective for larger sediments but are less optimized for fine particles. These can be more economical and offer adequate filtration in systems where sediment levels are low, but they may require more frequent maintenance and replacement when exposed to high sediment loads.
High-Flow and Larger Micron Filters
High-flow filters or larger micron-rated filters have a different use case—they are designed to pass larger volumes of water quickly but may sacrifice fine sediment removal for increased flow. If your system needs rapid filtration of coarse debris rather than fine particles, these options can be advantageous. However, they do less to prevent system damage due to fine sediment infiltration, which is where the 5-micron pleated design excels.
When Each Approach Outperforms the Others
- Use the Nelsen 5-Micron Pleated Filter When: You need detailed removal of fine sediment particles that can cause clogging and damage in sensitive equipment. Its pleated design offers a high surface area for longer service life and consistent filtration, making it ideal for environments with high sediment loads or where water clarity is paramount.
- Opt for String-Wound or Cost-Effective Filters When: Your water contains predominantly larger particles, and filtration cost and simplicity are more important than the fine removal of debris. These filters work well as pre-filters in systems with low sediment levels.
- Choose High-Flow or Larger Micron Filters When: your system requires rapid water flow with less concern about fine sediment. They are suitable for primary removal of larger debris when system efficiency takes precedence over sediment detail.
Final Considerations
Selecting the right sediment filter depends heavily on your specific water quality issues and system design. The Nelsen 20-inch 5-micron pleated filter cartridge offers an advanced approach for environments where removal of fine sediments is critical, providing durability and efficiency unmatched by some alternatives. Conversely, less detailed filters may be more suitable in applications with simpler sediment challenges or where cost considerations dominate.
Understanding the specific benefits and limitations of each filtering method ensures your water treatment system operates effectively, maintains longevity, and delivers the highest water quality possible.
Sizing the system to the household
When selecting a filtration system, household size and peak demand are essential factors. The Nelsen 20-inch 5-micron pleated dirt filter cartridge is designed to handle varying water needs, making it suitable for families of different sizes. To determine the appropriate capacity, consider the number of residents and their daily water usage, which typically averages 80 to 100 gallons per person. This figure can increase significantly during peak times, such as mornings and evenings when multiple fixtures may be in use.
For larger households, a higher capacity filter may be necessary to ensure adequate flow and filtration, especially if the water source contains substantial sediment. Conversely, smaller households may find that a standard capacity cartridge is sufficient. Adjusting the filtration system according to household size ensures efficient operation while maintaining optimal water quality.
