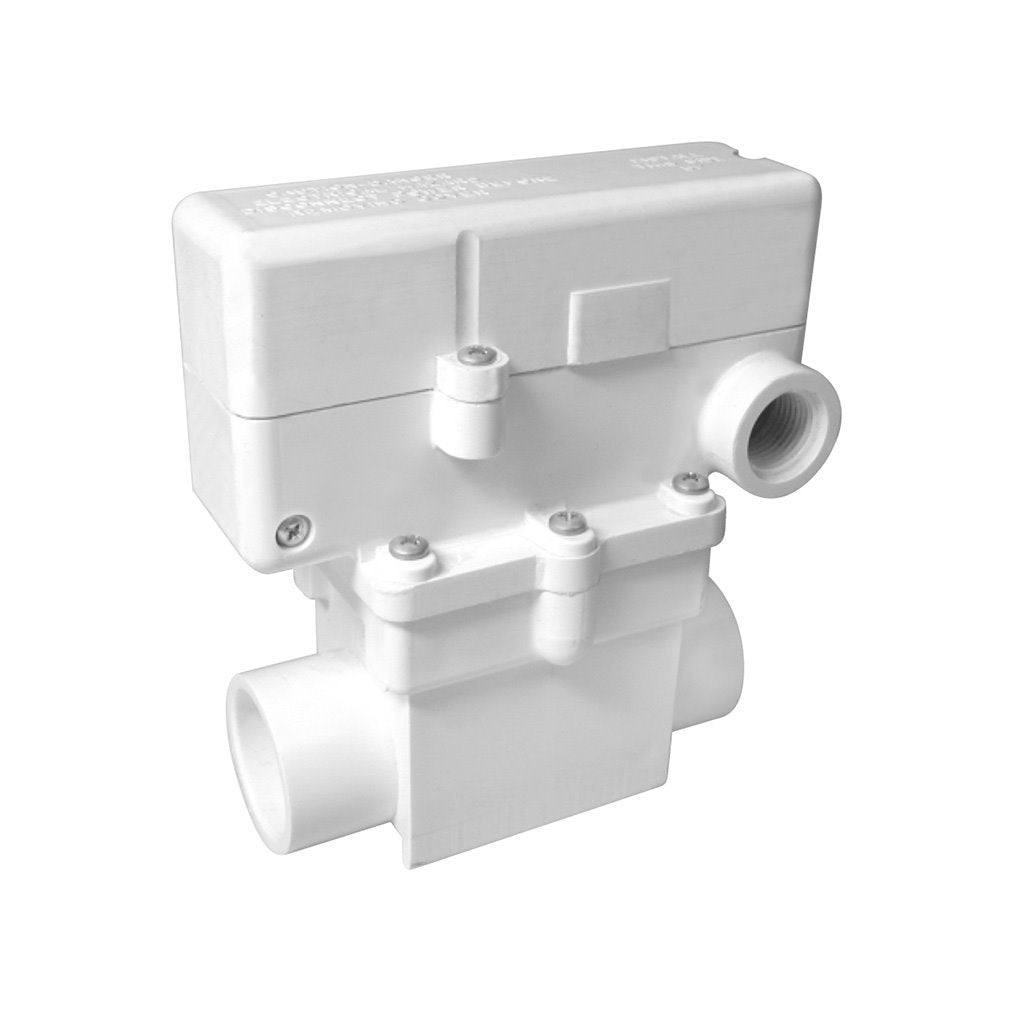

Understanding the Critical Role of the 1-inch Chemical Feed Pump Flow Switch
The 1-inch chemical feed pump flow switch is an essential component in water treatment systems, designed to monitor fluid flow and ensure the proper operation of chemical feed pumps. Its primary function is to detect flow interruptions, alerting operators or shutting down the pump to prevent damage or unsafe chemical dosing. Despite its robust design and reliability, this equipment can develop faults over time that may compromise system safety and efficiency. Recognizing and correctly diagnosing these issues is key to maintaining smooth operation and preventing costly repairs.
Common Faults in the Flow Switch and Their Causes
- No Signal or False Flow Detection: Often caused by debris buildup, mechanical wear, or misalignment that prevents accurate flow detection.
- Inconsistent or Intermittent Signals: May result from wiring problems, loose connections, or corrosion inside the switch. li>Delayed Response to Flow Changes: Could be due to internal mechanical sticking, gasket issues, or debris obstructing moving parts.
- Failure to Shut Off or Trigger Alerts: Usually linked to internal component failure, electrical faults, or power supply issues.
Step-by-Step Diagnosis of Faults
1. Verify Power Supply and Wiring
Start by checking the electrical connections for looseness, corrosion, or damage. Ensure that the power supply is stable and that wiring terminals are properly secured. A simple continuity test with a multimeter can confirm if electrical signals are reaching the switch correctly.
2. Inspect the Mechanical Components
Remove the switch from the system if possible, and examine the internal mechanical parts. Look for debris, dirt, or build-up that could hinder the movement of internal components. Check for signs of corrosion or wear that may affect performance.
3. Test the Mechanical Operation
Manually activate the flow switch (if designed for testing) to see if it responds as expected. For example, simulate flow by passing water through the pipe or by manually pressing any test buttons. If the switch doesn’t activate, internal mechanical failure is likely.
4. Check for System Blockages or Flow Issues
Ensure that the piping system is free of obstructions, clogs, or air pockets that could interfere with flow detection. Verify that the fluid is flowing at an expected rate and that the valve settings are correct.
Common Fixes and Maintenance Tips
- Cleaning and Debris Removal: Regularly clean the switch housing and internal components to prevent dirt and debris from obstructing movement.
- Recalibration: Some switches may require calibration to ensure threshold settings are accurate. Follow manufacturer instructions for calibration procedures.
- Mechanical Repairs or Replacement: Worn or damaged internal parts should be replaced, or the entire switch installed anew if repair is not feasible.
- Electrical Repairs: Secure loose wiring, replace damaged connectors, or repair internal circuitry as needed.
- Preventive Maintenance: Schedule routine inspections and cleaning to prevent buildup and mechanical failure, especially in environments with high sediment or chemical deposits.
When to Seek Professional Support
If troubleshooting steps do not resolve the issues, or if you are unsure about handling electrical or mechanical repairs safely, contact qualified water treatment professionals. Proper diagnosis and repair are vital to ensure system safety and continued operation.
Conclusion
The 1-inch chemical feed pump flow switch is built for durability and accurate flow detection. However, faults can develop that impact system performance. Recognizing common problems—such as mechanical sticking, electrical faults, or debris accumulation—and following systematic troubleshooting procedures can help you identify and fix issues efficiently. Maintaining your flow switch through regular inspection and cleaning will ensure reliable operation, safeguarding your water treatment system from damage and chemical dosing inaccuracies.
What local testing usually reveals
Water tests in this area often reveal varying levels of chlorine, pH, and total dissolved solids (TDS), which can impact the performance of a chemical feed pump. High chlorine levels may indicate that the dosing system is oversaturating, while low pH levels can lead to corrosion of system components. Common results also point to elevated TDS, indicating the presence of minerals that could clog the flow switch and hinder its operation.
When interpreting the results, look for chlorine concentration in parts per million (ppm), pH levels ideally between 6.5 and 8.5, and TDS measurements that should generally remain low to ensure efficient operation. These factors all contribute to the overall functionality of the 1-inch chemical feed pump flow switch, M210-100.
