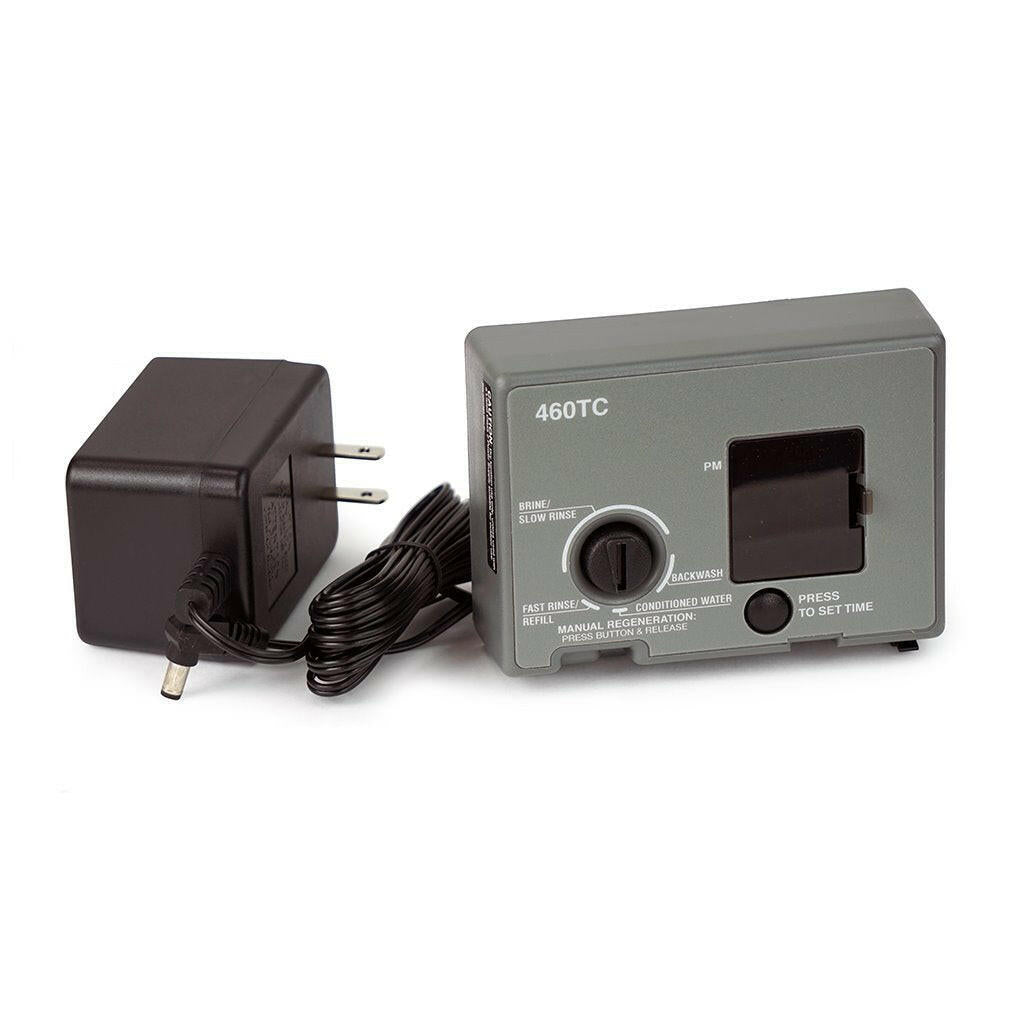

Understanding Autotrol 460TC Control Valve Faults
The Autotrol 460TC control valve is a crucial component in water treatment systems, responsible for regulating regeneration cycles and other timed processes. Despite its reliability, it can develop faults that disrupt system performance. Diagnosing and fixing these common issues ensures optimal operation and prolongs the lifespan of your water treatment equipment.
Common Faults in the Autotrol 460TC Control Valve
Many users encounter specific issues with their Autotrol 460TC control valves. Recognizing these problems early can prevent more serious damage and costly repairs. Here are some of the most frequently observed faults:
- Synchronization Errors: The control valve may become out of sync with the system’s programmed schedule, leading to improper regeneration cycles or delays.
- Electronic Component Failures: The microprocessor or digital display can malfunction due to electrical issues, resulting in incorrect timing or system errors.
- Valve Sticking or Mechanical Jam: Mechanical parts within the control valve can stick or jam, preventing proper operation of the valve or movement of internal components.
- Power Interruptions: Power outages or fluctuations can cause the control system to reset, lose programmed settings, or fail to operate correctly upon restart.
- Sensor or Connection Issues: Faulty sensors or loose connections can lead to inaccurate readings or failed communication within the system.
Diagnosing Autotrol 460TC Control Valve Faults
Effective troubleshooting begins with understanding the symptoms and systematically checking potential problem areas:
-
Check for Program and Schedule Errors
Ensure the control system is correctly programmed and that the schedule aligns with your usage patterns. A mismatch can cause irregular operation.
-
Inspect Power Supply and Connections
Verify that the control valve receives consistent power. Look for loose wires or damaged connectors that could interrupt operation.
-
Evaluate the Digital Display and Settings
If the display shows error codes or is unresponsive, this may indicate electronic component failure. Rechecking and resetting settings can sometimes resolve minor glitches.
-
Examine Mechanical Components
Inspect for signs of sticking or jamming. Mechanical obstructions or corrosion can hinder internal movement, affecting overall performance.
-
Test Sensor Functionality
Ensure sensors are functioning correctly and providing accurate data. Faulty sensors can lead to incorrect system responses.
Fixing Common Faults in the Autotrol 460TC Control Valve
Addressing faults often involves targeted actions based on the diagnosis:
- Reprogram the Control System: Reset the schedules and parameters to match current water usage patterns.
- Replace Electronic Components: If the microprocessor or digital display is faulty, professional replacement may be necessary.
- Clean or Replace Mechanical Parts: Regular maintenance, including cleaning and lubrication, can prevent sticking or jamming. Replacing worn parts restores proper movement.
- Secure Connections and Power Supply: Tighten loose wiring and ensure stable power sources to prevent resets and erratic operation.
- Test and Replace Sensors: Faulty sensors should be calibrated or replaced to ensure accurate system responses.
Preventative Measures to Minimize Future Faults
Regular maintenance and system checks can reduce the incidence of control valve faults:
- Perform routine inspections of electrical and mechanical components.
- Keep the control system’s software updated, if applicable.
- Ensure water quality does not accelerate corrosion or scaling within the valve.
- Schedule periodic testing and calibration of sensors and electronic parts.
By understanding the typical faults and their remedies, you can maintain your Autotrol 460TC control valve in peak condition. Proper diagnosis and timely repairs help sustain the efficiency and reliability of your water treatment system, ensuring clean, safe water for your needs.
A Realistic Maintenance Schedule
Maintaining the Autotrol 460TC control valve is essential for ensuring its longevity and effective operation. A monthly inspection should be conducted to check for any signs of leaks, corrosion, or loose connections. During these inspections, confirm that the valve is functioning correctly by observing its regeneration cycle and ensuring it aligns with the programmed schedule.
On a quarterly basis, consider cleaning the valve and surrounding area to prevent any build-up of sediment or debris that may affect performance. Additionally, once a year, review the microprocessor settings to ensure they are accurate, and replace the batteries if applicable. A comprehensive yearly maintenance check, performed by a qualified technician, can help identify any potential issues before they escalate, ensuring your water treatment system continues to operate efficiently.
