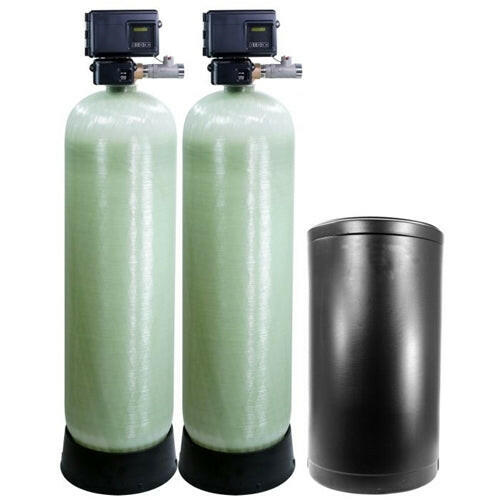

Understanding the Fleck Pentair 2900 NXT2 Control System
The Fleck Pentair 2900 NXT2 is renowned for its durability and high capacity in commercial and industrial water treatment setups. It integrates a robust Fleck 2900 control valve with an advanced NXT2 controller, enabling precise regulation and monitoring of water treatment processes. This system is designed to handle high flow rates, making it ideal for large-scale applications.
Common Faults in the Fleck Pentair 2900 NXT2 and How to Diagnose Them
1. Incorrect or Unresponsive Control Valve Operation
One of the most frequent issues is the control valve not functioning as expected. Symptoms include failure to initiate regeneration cycles, improper flow distribution, or the valve remaining stuck in one position.
Diagnosis: Check for any physical obstructions or debris within the valve assembly. Verify that the valve’s actuator is receiving power and that the solenoid coil is not damaged. Listen for clicking sounds during valve operation; absence may indicate electrical issues.
2. Controller Malfunctions or Errors
The NXT2 controller may display error codes, stall, or fail to initiate programmed cycles. These issues can impair system performance and lead to inconsistent water quality.
Diagnosis: Review the controller’s display for error messages and reset the system if needed. Inspect wiring connections for corrosion, loose wires, or damage. Verify that the power supply is stable and providing the correct voltage.
3. Regeneration Cycle Failures
If the system doesn’t regenerate properly, it can result in poor water quality and equipment strain. This failure could be due to sensor issues, incorrect settings, or mechanical faults.
Diagnosis: Confirm that the meters and sensors embedded in the system are clean and functioning accurately. Check the system’s real-time data and settings to ensure they align with the manufacturer's specifications.
4. Flow Rate Irregularities
Inconsistent or inadequate flow rates during operation may suggest blockages, valve damage, or controller misconfigurations.
Diagnosis: Measure flow rates at different points and compare them to expected specifications. Look for signs of clogging in the media or pipes, and examine the valve operation for signs of wear or damage.
How to Fix Common Faults in the Fleck Pentair 2900 NXT2
Addressing Valve Malfunctions
- Inspect the valve for debris or physical damage. Clean or replace damaged parts as necessary.
- Verify electrical connections and replace the solenoid coil if it shows signs of burn damage or malfunction.
- Test the actuator for proper movement. If it’s stuck or unresponsive, repair or replace the actuator assembly.
Resolving Controller Issues
- Reset the controller by powering down and restarting the system, ensuring proper power supply stability.
- Update or reconfigure settings based on the system’s requirements and manufacturer’s guidance.
- Replace faulty wiring or connectors showing corrosion, damage, or loose connections.
Fixing Regeneration Cycle Problems
- Clean sensors and meters to ensure accurate readings.
- Adjust system settings to match operational parameters if incorrect.
- Inspect valves involved in the regeneration cycle for wear or mechanical damage, and replace if necessary.
Improving Flow Rate Performance
- Clear any blockages in pipes, media beds, or filters.
- Replace worn or damaged valve components to restore proper flow regulation.
- Verify and calibrate flow sensors and controllers to match system requirements.
Preventative Tips to Minimize Faults
- Conduct regular visual inspections for debris, corrosion, or mechanical wear.
- Schedule routine calibration of sensors and verification of electrical connections.
- Follow maintenance guidelines precisely, including cleaning and replacing worn parts promptly.
- Ensure power supply stability to prevent electrical malfunctions in the controller and valves.
Conclusion
Proactive diagnosis and maintenance are key to ensuring your Fleck Pentair 2900 NXT2 operates smoothly and reliably. Understanding common faults and their solutions empowers you to address issues promptly, minimizing downtime and maintaining high water quality standards. If problems persist beyond basic troubleshooting, consulting a water treatment professional is recommended to prevent further complications.
Protecting plumbing, fixtures and appliances
Untreated water can lead to significant downstream damage in your plumbing system, fixtures, and appliances. Hard water can cause scale buildup in pipes, decreasing water flow and leading to potential blockages. Additionally, minerals like calcium and magnesium can accumulate in faucets and showerheads, reducing water pressure and causing unsightly stains. Appliances such as water heaters and dishwashers may also suffer from decreased efficiency and shorter lifespans due to mineral deposits.
Installing the NXT2 PH SET Fleck 2900 can help mitigate these issues by treating water at the source, thereby protecting your investments. By softening the water and removing harmful contaminants, you can extend the life of your plumbing and appliances while maintaining optimal performance.
