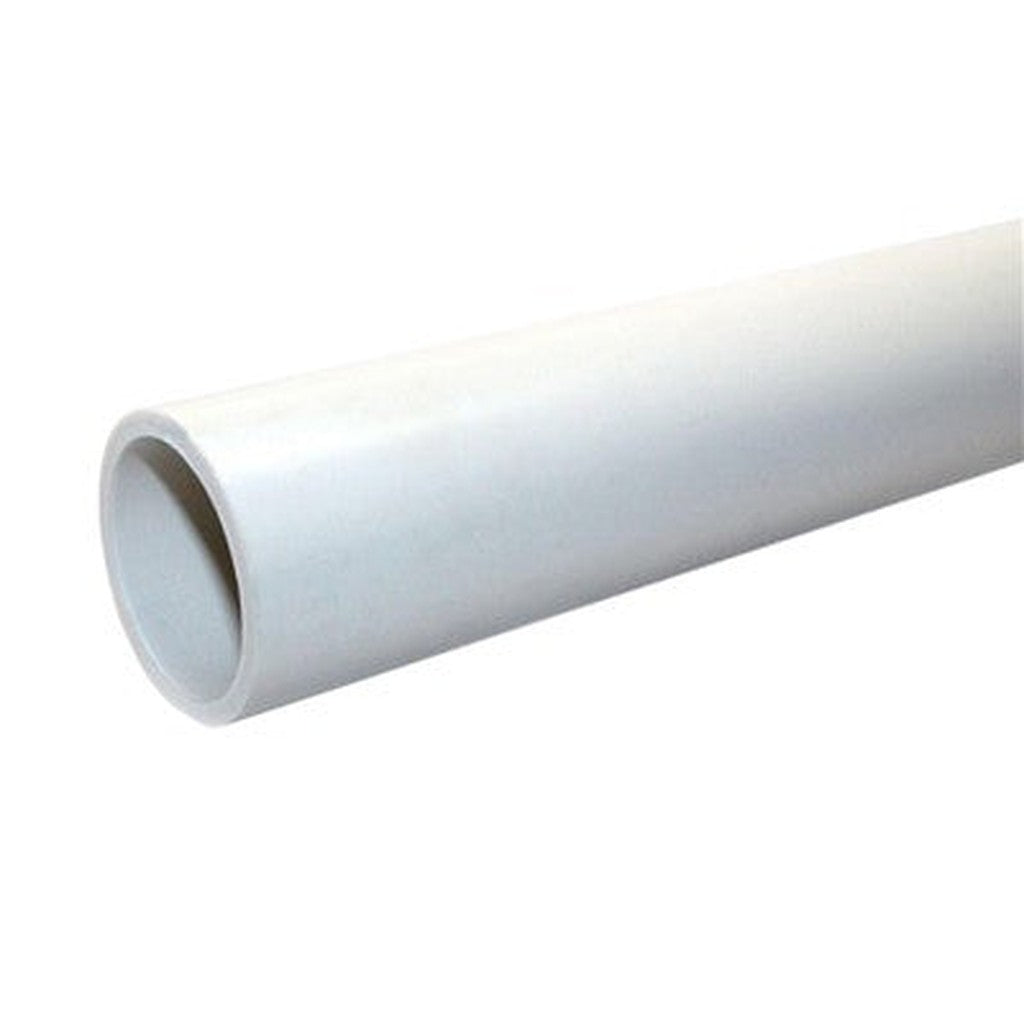

Understanding Common Issues in 3" Schedule 40 PVC Pipe for Water Systems
Large-scale water treatment and distribution systems often rely on 3" Schedule 40 PVC pipe for high-volume conveyance. Its corrosion-resistant properties and smooth bore make it ideal for handling substantial flow rates without degradation over time. However, like any plumbing equipment, this type of pipe can develop faults that hinder system performance. Recognizing and effectively addressing these issues is essential to maintain optimal flow, prevent costly downtime, and extend the lifespan of your infrastructure.
Common Faults in 3" Schedule 40 PVC Pipe Systems
- Leakages at Joints and Fittings: The primary source of leaks is improper assembly, inadequate cementing, or joint degradation over time.
- Cracks and Structural Damage: Mechanical impact, freezing conditions, or stress from system pressures can cause cracks or deformities, compromising integrity.
- Blockages and Internal Scaling: Internal bore buildup from mineral scaling or debris can restrict flow, especially in large diameter lines.
- Flow Restrictions Due to Misalignment: Incorrect installation or shifting of pipe sections can create kinks or misalignments, impacting flow efficiency.
Diagnosing Faults in PVC Pipe Lines
Detecting Leaks and Cracks
Leaks are often identified by visible drips or water accumulation at joints, fittings, or along the pipe length. Pressure drops in the system can also indicate leaks. For cracks, look for visible fractures, deformation, or discoloration in the pipe material. Using pressure testing can reveal hidden weaknesses or small fissures not yet visible.
Assessing Blockages and Scaling
Flow rate reductions, increased pressure readings upstream, or frequent system shutdowns can suggest internal blockages. A visual inspection, combined with a flushing process, can help determine if buildup is present. Chemical or mechanical cleaning might be necessary if scaling restricts internal bore diameter.
Checking for Misalignments
Ensure pipe sections are properly aligned, with fittings seated correctly and joints fully bonded. Signs of misplacement include uneven flow or vibrations during operation. Proper system inspection should confirm that all pipe connections are secure and straight.
Effective Fixes for Common PVC Pipe Faults
Addressing Leaks and Cracks
- Proper Assembly: Ensure that pipe ends are cut square and deburred before assembly. Use PVC primer and solvent cement generously and correctly to create a strong, leak-proof bond.
- Joint Reinforcement: For suspect joints, disassemble and reapply cement, making sure to brush ample cement on all mating surfaces and assemble promptly to allow proper curing.
- Crack Repair: Small cracks can sometimes be sealed with epoxy or specialized PVC repair kits. If damage is extensive, replacing the affected pipe section is recommended.
Removing Blockages and Scaling
- Chemical Cleaning: Use appropriate chemical solutions designed to dissolve mineral scale without damaging PVC.
- Mechanical Cleaning: Employ pipe brushes or pigging tools compatible with large-diameter PVC pipes to scrub the interior surface.
- Preventive Measures: Regular flushing and water treatment adjustments can minimize mineral deposit formation, maintaining optimal flow rates.
Correcting Misalignments and Mechanical Damage
- Realignment and Replacement: Disassemble sections that are misaligned or damaged. Cut new pipe segments to restore proper length and install with correct fittings.
- Support and Stabilization: Ensure proper support along the pipe run to reduce stress and movement, preventing future misalignments or damage.
Preventive Practices for Long-Term Reliability
- Regular system inspections help catch early signs of deterioration or leaks.
- Use proper assembly techniques, including sufficient cement coverage and prompt connection, to ensure corrosion-proof joints.
- Maintain water quality and consider treatment adjustments to reduce mineral scaling inside the pipe.
- Install adequate supports and avoid excessive mechanical stress, especially around elbows and fitting transition points.
Conclusion
While 3" Schedule 40 PVC pipe is designed for durability and high-volume transfer, faults can still develop under certain circumstances. Proper diagnosis of leaks, cracks, blockages, and misalignments allows for targeted repairs, maximizing the pipe's performance and lifespan. Employing meticulous assembly practices, regular inspections, and preventive maintenance are essential steps to ensure the long-term reliability of your water distribution system.
Sizing the system to the household
When selecting a 3" Schedule 40 PVC pipe system for your home, it's important to consider household size and peak water demand. Larger households or those with multiple bathrooms, appliances, and irrigation systems will require a greater flow capacity to ensure adequate water pressure and availability during peak usage times. Estimating the flow needs based on the number of fixtures and common usage patterns can help determine the appropriate size and layout of your plumbing system.
In this area, water usage can vary significantly due to seasonal changes and local climate. For instance, households with extensive landscaping may require more water during dry months, increasing peak demand. Therefore, accurate sizing not only ensures optimal performance but also helps in preventing issues such as blockages or leaks due to undersized pipes. Properly sizing your PVC system will help maintain efficient water delivery throughout your home, contributing to long-term reliability and reduced maintenance needs.
