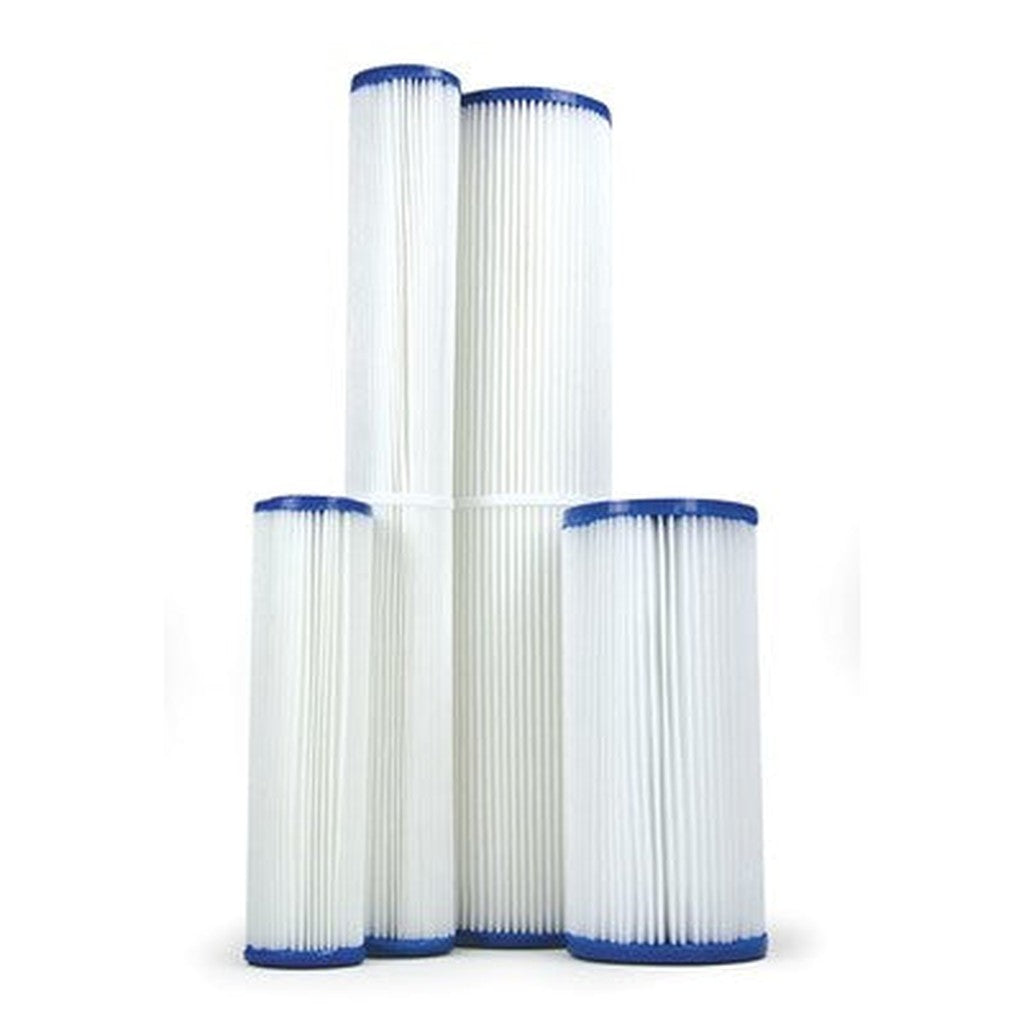

Introduction to the Nelsen 20 Micron Pleated Dirt Filter Cartridge
The Nelsen 20 micron pleated dirt filter cartridge, identified by the model numbers NPF-20-20 and 57-000496-C, is designed for straightforward installation and reliable operation in water treatment systems. Its primary purpose is to protect your equipment by effectively removing fine sediment particles, such as dirt, rust, and sand, that can cause damage and clogging. This guide provides a step-by-step walkthrough to ensure correct setup, optimal performance, and ease of maintenance, focusing solely on practical installation procedures.
Understanding the Filter Cartridge’s Features for Proper Installation
Before initiating the installation, familiarize yourself with the cartridge’s key features:
- 20-micron pleated filtration media for capturing fine particles
- Standard 20-inch length for compatibility with most filter housings
- Durable pleated design for increased surface area and extended life
- Lightweight construction that minimizes system strain
Having these features in mind will help you handle the cartridge correctly and ensure it functions efficiently once installed.
Step 1: Preparation Before Installation
Proper preparation is essential for a successful setup:
- Turn off the water supply to the filtration system to prevent leaks or water damage during cartridge replacement.
- Relieve system pressure if applicable, by opening a faucet downstream of the filter to allow air to enter the system and water to drain out.
- Gather necessary tools and materials, including gloves, a clean towel, and a filter housing wrench if needed.
- Inspect the new cartridge to confirm it is clean and free of damage. Do not install a damaged cartridge.
Step 2: Removing the Old Cartridge
Carefully remove the existing filter cartridge:
- Open the filter housing by unscrewing the housing cover, following your system’s specific procedure.
- Gently take out the used filter cartridge, handling it carefully to avoid dislodging dirt or sediment.
- Dispose of the used cartridge according to your local regulations, avoiding spillage or contamination.
Step 3: Installing the New Nelsen Dirt Cartridge
Installing the new cartridge involves aligning and placing it correctly within the housing:
- Ensure the O-rings or seals in the housing are clean and properly seated to prevent leaks.
- Insert the Nelsen pleated dirt filter cartridge into the housing, aligning it with the connections and ensuring it sits flush and securely.
- Double-check that the cartridge is oriented correctly and seated fully to maintain proper flow and filtration.
Step 4: Reassembling the System
Reassemble and restore water flow:
- Close the filter housing tightly, ensuring all threads are clean and seals are intact.
- Gradually open the inlet valve to allow water to pressurize the system, watching for any leaks around the housing.
- Once the system is pressurized, open downstream faucets to flush the new cartridge and remove any trapped air or installation debris.
- Check for leaks and verify that water flows freely through the system without obstruction.
Maintenance and Replacement Recommendations
For optimal performance, regularly inspect the cartridge and replace it as needed, typically based on system flow rate and sediment load. The pleated design allows for longer intervals between replacements, but maintaining a schedule ensures your system remains protected and efficient. Always power down the system before replacement to ensure safety and prevent damage.
Conclusion: Ensuring a Smooth Installation Experience
The Nelsen 20 micron pleated dirt filter cartridge provides reliable sediment filtration with straightforward installation steps. By following this practical walkthrough, you can maintain your water treatment system’s effectiveness, extend its lifespan, and ensure continuous, clean water supply. Proper handling, careful assembly, and regular upkeep are the keys to maximizing the benefits of this robust filtering component.
Questions worth asking before buying
Before purchasing the Nelsen 20 micron pleated dirt filter cartridge, homeowners should consider several important factors to ensure they choose the right solution for their water quality issues. First, evaluate the specific contaminants present in your water supply. Identifying the types and levels of sediment—such as dirt and sand—will help determine if a 20-micron filtration system is adequate for your needs. Conducting a water test can provide valuable insights into the quality of your water.
Next, assess your filtration system's compatibility. The Nelsen Dirt Cart is designed to fit standard filter housings, but checking compatibility with existing equipment is essential to avoid any installation issues. Additionally, consider your water usage patterns. Higher water consumption may require more frequent filter changes, so understanding your household needs can inform your decision on filter type and maintenance schedule.
