Fleck Wire Harness, Upper Drive

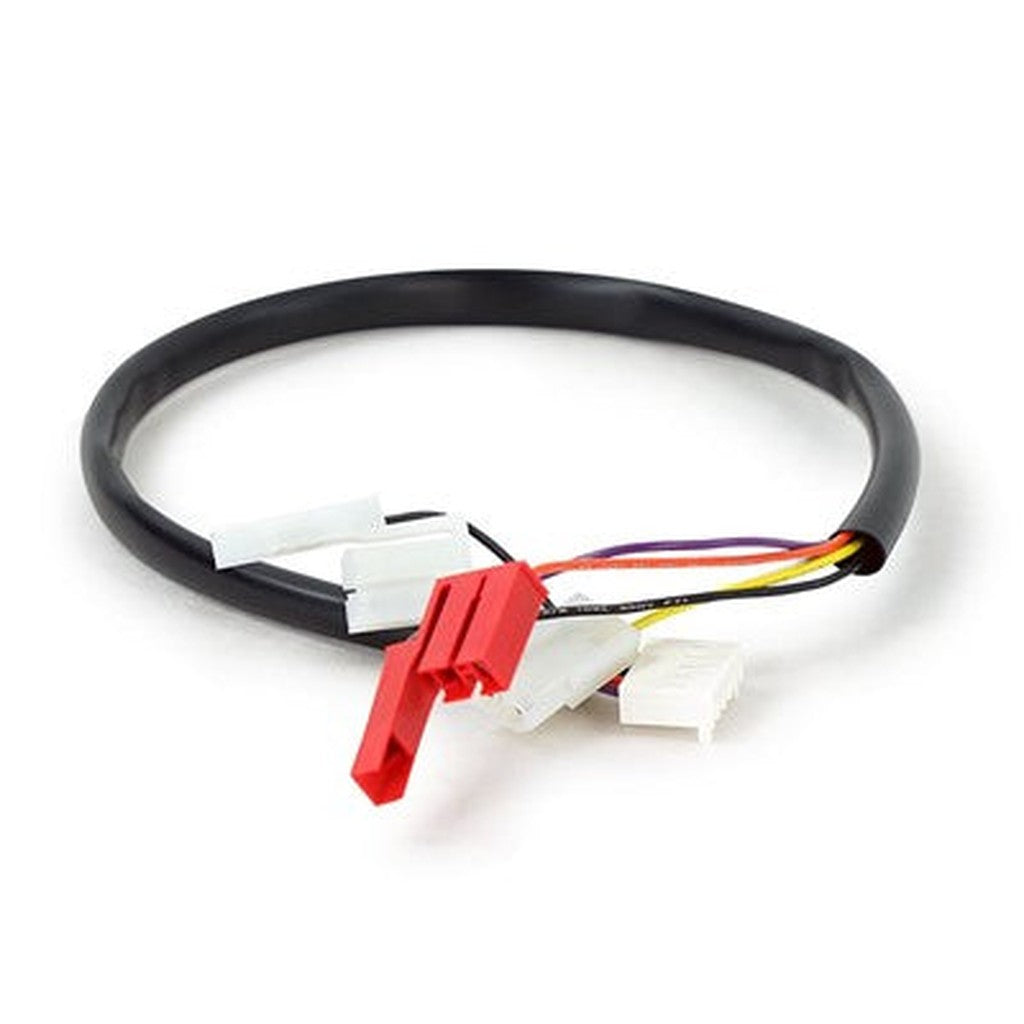

The Fleck Upper Drive Wire Harness (FL40941) is the wiring assembly that feeds power and signals to the upper-drive section of multi-drive Fleck control valves. On valves that use separate upper and lower drive assemblies, dependable upper-drive wiring is essential for coordinated, accurate cycling through regeneration. When the two drives must work in concert, the integrity of each harness directly affects the whole sequence.

This is a genuine Pentair Fleck component. Whenever you service the drive end of a valve, refreshing aged wiring helps eliminate the intermittent faults that brittle or corroded harnesses can cause, and it ensures the rebuilt control behaves predictably for years to come.

Component overview

• Upper-drive wire harness for Fleck control valves
• Delivers power and control signals to the upper drive assembly
• Genuine Pentair Fleck replacement part
• Helps ensure reliable, coordinated cycle operation
• A smart item to inspect during any drive-end rebuild
• Resolves erratic behavior traced to degraded wiring

Wiring problems are easy to overlook but can be the true source of frustrating, hard-to-diagnose softener behavior: a valve that advances inconsistently, stalls partway through a cycle, or shows erratic timer readings that come and go. Because these faults are intermittent, they often lead to unnecessary replacement of motors or boards before the wiring is finally suspected. On larger multi-drive Fleck valves, the upper and lower drives must work in synchrony, so a degraded upper harness can throw off the entire regeneration sequence rather than just one stage.

When you have the control open for other repairs, check the harness for cracked insulation, loose or corroded pins, and signs of heat or chafing, and replace it if there is any doubt. A new harness is inexpensive relative to the diagnostic time a failing one can consume. Always disconnect power before working on the wiring, transfer the connections carefully so nothing is reversed, and route the new harness clear of moving cam and gear parts to prevent future chafing and a repeat failure. A fresh, properly routed upper harness gives you confidence that the wiring is no longer a suspect the next time you troubleshoot the valve, letting you focus on mechanical components if a problem ever recurs.
